Reed H8S Hinged Pipe Cutter 6 inches - 8 inches HS8-12

Product Description

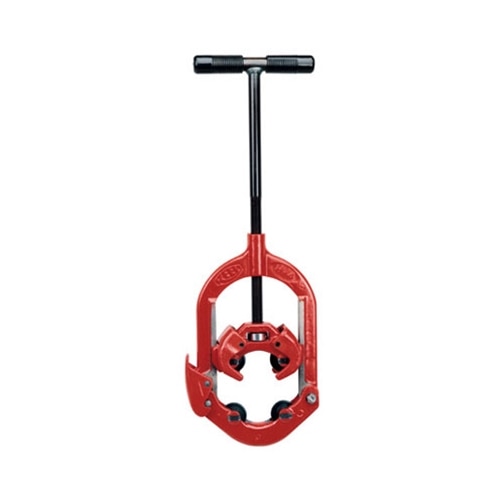

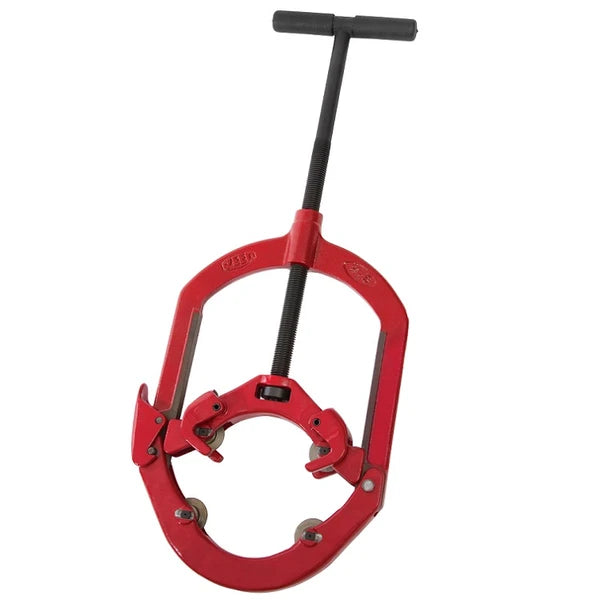

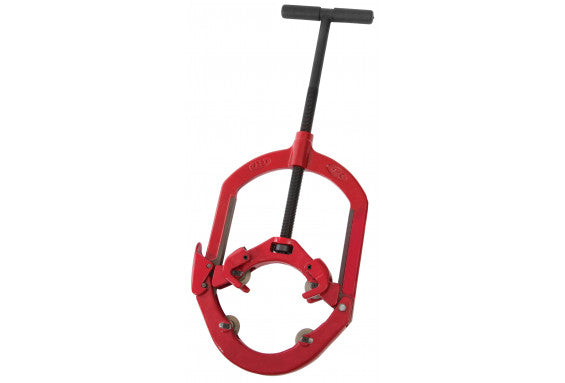

The REED H8S hinged pipe cutter features four wheels to cut steel, stainless steel, cast and ductile iron with only 90° to 110° handle swing. It requires only 4 inches of clearance around the pipe. It is designed for rapid cutting of 6-inch through 8-inch steel pipe, heavy-wall steel pipe, and cast-iron pipe.

• Needs only 4 inches of clearance around pipe.
• Efficient handle swing of only 90° to 110°.
• Opens with hinge to place cutter around the pipe.

Product Highlights

The REED H8S hinged pipe cutter can be used anywhere - in the ditch, underwater, overhead, in racks of pipe! It ships with cutter wheels installed for cutting steel and stainless steel pipe.

Product Information

Standard Information

• Brand: REED
• Manufacturer Part Number: H8S
• Country of Origin: United States

Technical Specifications

• Catalog No.: H8S
• Item Code: 03140
• Pipe Capacity in-nom: 6 - 8
• actual O.D. mm: 168 - 240
• Cutter Wheel: HS8-12
• Application: Copper Pipe, Sch. 80 Stainless/Sch. 80 Steel 6", Sch. 40 Stainless/Std. Steel 7", Sch. 40 Stainless/Sch. 60 Steel 8"
• Length in: 32
• Length mm: 813
• Weight lbs: 24.4
• Weight kg: 11.1
• Brand: Reed Mfg
• Country of Origin: United States
• Toolup Part #: 60712
• Pipe Capacity: 6" - 8"
