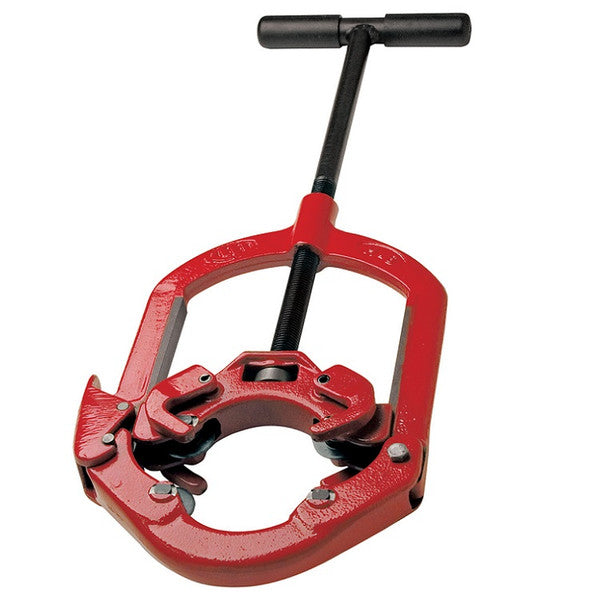

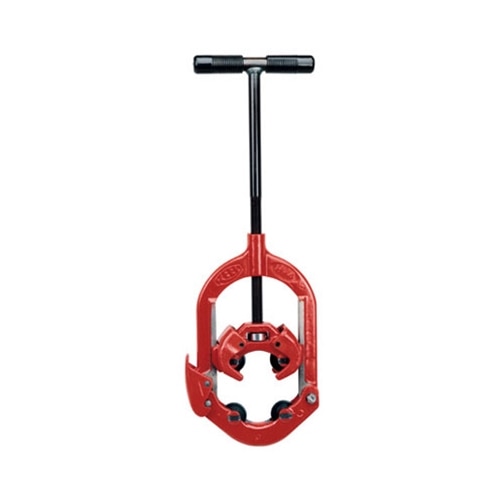

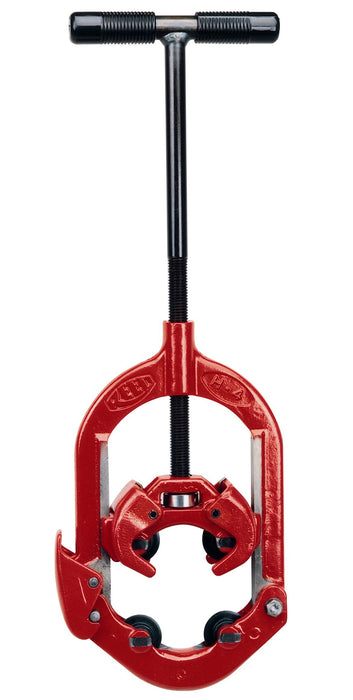

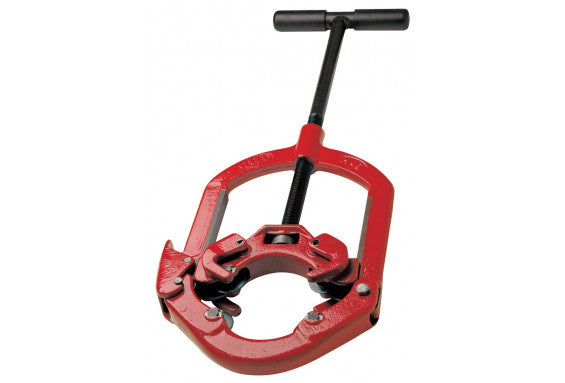

Reed H6S Hinged Pipe Cutter 4 inches - 6 inches

Product Description

The REED H6S hinged pipe cutter, with HS6 cutter wheel, is designed for cutting 4" - 6" copper, Type K & L. It features a hinged design requiring only 4 inches of clearance around the pipe. The efficient handle swing operates within a 90 to 110-degree range.

• Requires only 4 inches (102 mm) of clearance around pipe.
• Features an efficient handle swing of only 90 to 110 degrees.
• Opens with hinge to easily place cutter around the pipe.

Product Highlights

This hinged pipe cutter can be used in various environments, including in ditches, underwater, and overhead.

Product Information

Standard Information

• Brand: REED
• Manufacturer Part Number: H6S

Technical Specifications

• Pipe Capacity in-nom: 4 - 6
• actual O.D. mm: 114 - 182
• Cutter Wheel: HS6
• Application: Copper Pipe, Sch. 80 Stainless/Sch. 80 Steel 4", Sch. 80 Stainless/Extra Heavy Steel 4 1/2", Sch. 80 Stainless/Sch. 80 Steel 5", Sch. 40 Stainless/Sch. 40 Steel 6"
• Length in: 28
• Length mm: 711
• Weight lbs: 19.4
• Weight kg: 8.8
• Pipe Capacity: 4" - 6"
• Length: 28"
• Width: 10.75
• Height: 2.75
• Toolup Part #: 60653
