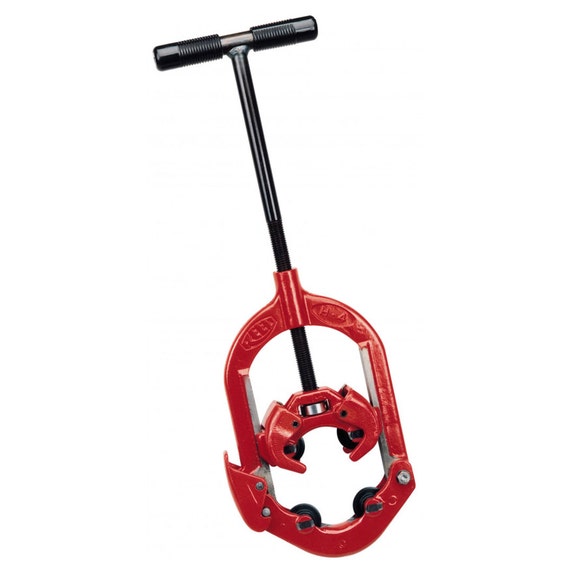

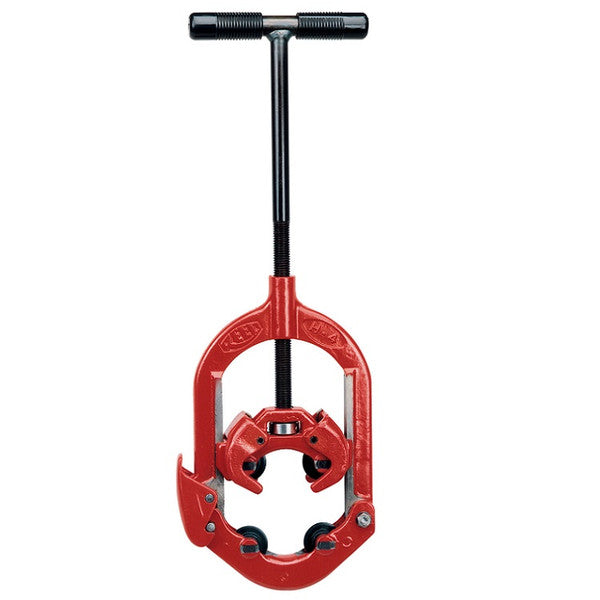

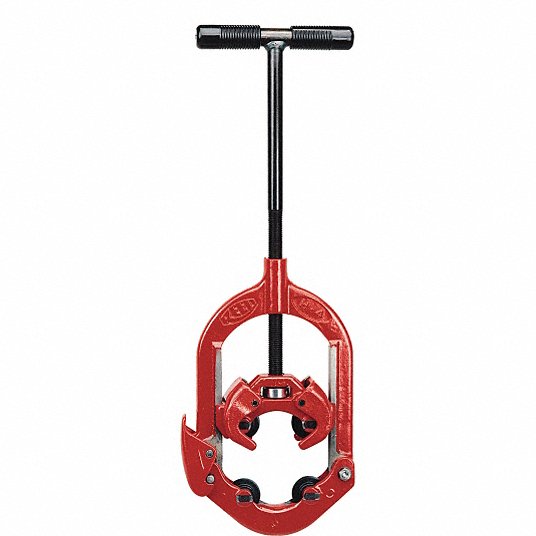

Reed H4S Hinged Cutter, Steel, 22in L

Product Description

The REED H4S hinged cutter is designed for cutting steel and stainless steel. It features a hinged design that requires only 4 inches of clearance around the pipe. With an efficient handle swing of only 90 to 110 degrees, this tool can be used in various locations, including ditches, underwater, and overhead.

• Can be used anywhere
• Efficient handle swing of only 90 Degrees to 110 Degrees
• Opens with hinge

Product Highlights

The hinged cutter features four wheels to cut steel, stainless steel, cast and ductile iron with only 90° to 110° handle swing.

Product Information

Standard Information

• Brand: REED
• Manufacturer Part Number: H4S
• Country of Origin: United States

Technical Specifications

• Product Type: Hinged Pipe Cutter
• Material Application: Stainless Steel, Steel
• Cutting Action: Manual
• Minimum Cutting Capacity: 2 in
• Maximum Cutting Capacity: 4 in
• Tool Length: 22 in
• Tool Height: 2 1/2 in
• Tool Width: 8 1/2 in
• Body Material: Iron
• Blade Material: Steel
• Handle Design: Ergonomic
• Handle Material: Rubber
• Cutter Style: Hinged 4-Wheel - provides additional access points
• Overall Length: 22 in
• Cutting Capacity: 2 in to 4 in
• Replacement Blade: Mfr. No. 03504
• Replacement Wheel: Mfr. No. 03504
• Outside Dia. Cutting Capacity: 2 in - 4 in
• Cuts [Specifications]: Steel/Stainless Steel Sch. 40
• Item [Specifications]: Hinged Cutter
• Features [Specifications]: Can Be Used In Ditch, Underwater, Overhead, Racks of Pipe; Opens with Hinge; Efficient Handle Swing of Only 90 to 110; Tool Steel Blade Material; Steel with Rubber Grip Handle; Manual Cutting Action; Ergonomic Handle Design
• Tool Width [Specifications]: 8 1/2 in
• Tool Height [Specifications]: 2 1/2 in
• Tool Length [Specifications]: 22 in
• Pipe Capacity in-nom: 2 - 4
• actual O.D. mm: 60 - 125
• Cutter Wheel: HS4
• Length in: 22
• Length mm: 559
• Weight lbs: 12.8
• Weight kg: 5.8
• MPN: 03120
• UPC/GTIN: 757033031203
• Minimum Pipe Size: 2 in
• Model: H4S
• Maximum Pipe Size: 4 in
• Cutter Type: Constant Swing Tubing Cutter
• Brand: Reed Mfg
• UPC: 757033031203
• Manufacturer Part Number: H4S
