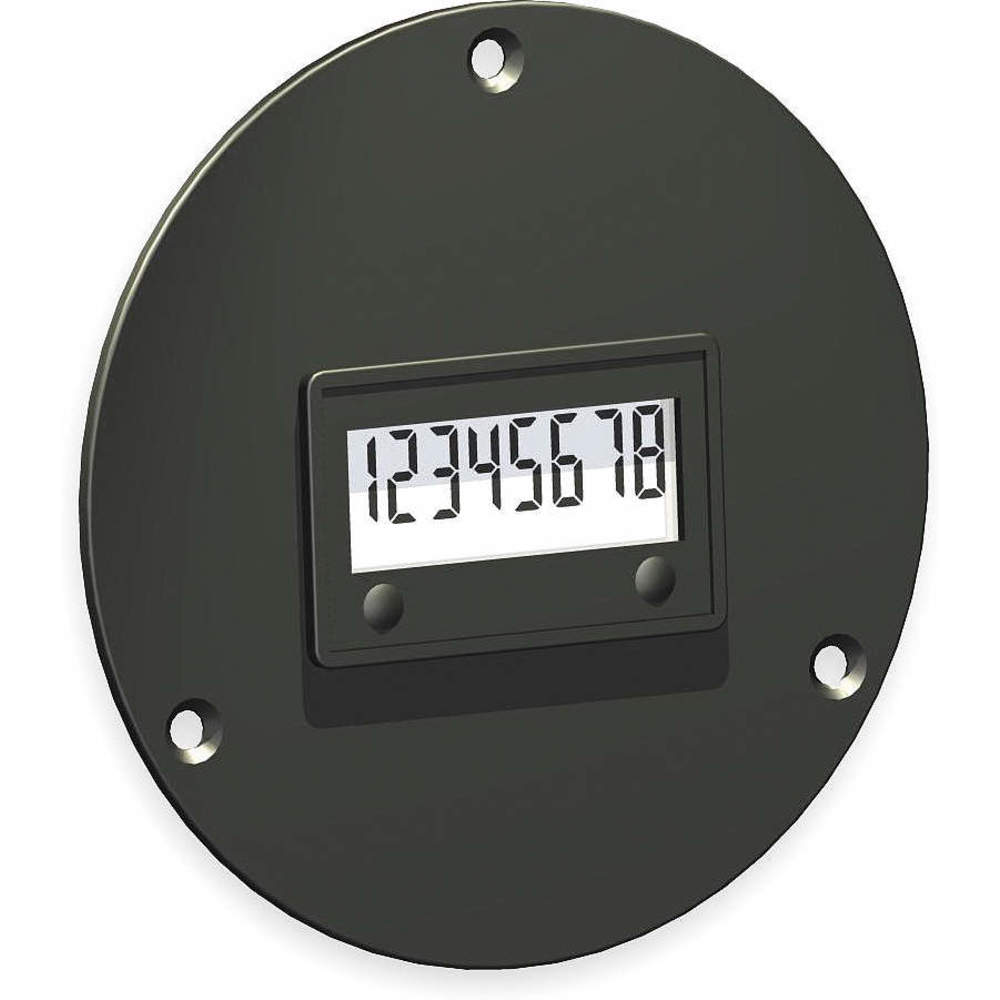

Redington 3410-1000 Hour Meter

Product Description

The REDINGTON 3410-1000 hour meter is designed for industrial applications. This meter features a backlit LCD display and a non-resettable function. It has an input voltage range of 10-300V AC/DC and can operate in temperatures from 14°F to 140°F.

• Backlit LCD display
• Non-resettable
• 3-hole mounting

Product Highlights

Ideal for tracking equipment usage in various industrial settings, this hour meter provides accurate and reliable timekeeping.

Product Information

Standard Information

• Brand: REDINGTON
• Manufacturer Part Number: 3410-1000
• Country of Origin: India

Technical Specifications

• Brand: Redington
• MPN: 3410-1000
• Model: Hour Meter
• Item: Hour Meter
• Ambient Temp. Range: -40°F to +185°F
• Bezel Face (in.): 2.87"
• Bezel Face Diameter: 2 7/8"
• Bezel Face Shape: Round
• Bezel To Back Length: 0.75"
• Depth: 1"
• Display Span: 9999999.9
• Display Type: Backlit LCD
• Display Units: Hours And Tenths
• Elapsed Time To: 999999.9
• Fits: 1.45" x 0.95" Panel Cutout
• Hour Unit Increment: Tenth
• Hz: 50/60 Hz
• Includes Mounting Hardware: Included
• Input Type: 10 To 300 V DC Or 20 To 300 V AC
• Input Voltage: 10-300V AC/DC
• Input Voltage - Maximum: 300V AC/DC
• Input Voltage - Minimum: 10V AC/DC
• Mount Securing Method: 3 Hole
• Mounting Style: Flange
• Nema Enclosure Rating: NEMA 12, NEMA 4
• Nema Rating: NEMA 12, NEMA 4, NEMA 4X
• No. Of Digits: 8
• Number Of Digits: 8.0
• Operating Temperature - Maximum: 140°F
• Operating Temperature - Minimum: 14°F
• Overall Depth: 1 1/8"
• Overall Diameter: 2 7/8"
• Reset Type: Non Resettable
• Temp. Range: -40°F to +185°F
• Time Range: 99999999 hrs.
• Timer: 9999999.9 hrs.
• Type: LCD
