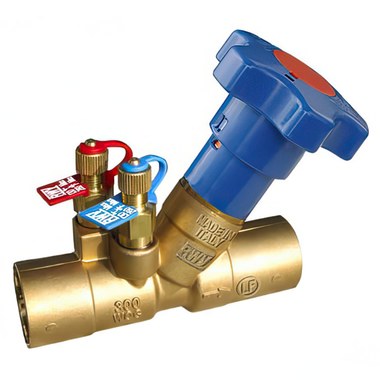

RED-WHITE VALVE CORP 9519AB-2 AB DZR Brass Balancing VLV CXC

Product Description

The RED-WHITE VALVE CORP 9519AB-2 is a hydronic balancing valve designed for HVAC systems and domestic water applications. This valve features a two-inch nominal size and is made from DZR brass, ensuring durability and reliability. It is equipped with an adjustable handwheel actuator for easy operation.

• Fixed orifice design for precise flow control
• Integral memory stop for consistent performance
• Positive shut-off to prevent leaks

Product Highlights

This valve is suitable for a range of applications, handling flow rates of up to fifty-five point sixty-three gallons per minute. Built to meet ASME and BS7350 standards, it offers excellent temperature resistance from fifteen to two hundred sixty degrees Fahrenheit.

Product Information

Standard Information

• Actuator Type: Adjustable Handwheel
• Body Material: DZR Brass

Technical Specifications

• Flow Rate: 55.63 gpm
• Dimensions: 6.73 inches L
• Nominal Size: 2 inches
• Pressure Class: 300 lb WOG
• Temperature Rating: 15 to 260 degrees F
• Softgoods Material: PTFE Disc Gasket/EPDM Perox Disc O-Ring
• End Style: Solder
• Manufacturer: RED-WHITE VALVE CORP
