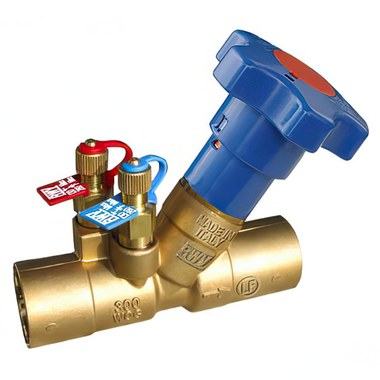

RED-WHITE VALVE CORP 9519AB-12 AB DZR BRASS BALANCING VLV CXC

Product Description

The RED-WHITE VALVE CORP 9519AB-12 is a reliable hydronic balancing valve used for both HVAC and domestic water applications. This model features a half-inch nominal size and is designed with a solder end style. It is built to withstand pressures of three hundred pounds water over gas and operates effectively in temperatures ranging from fifteen to two hundred sixty degrees Fahrenheit.

• Durable DZR brass body and trim
• Adjustable handwheel actuator for ease of use
• Integrated memory stop for consistent performance

Product Highlights

This valve is engineered for precise flow control and features a fixed orifice design that ensures reliable operation with water as the medium.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779702216

Technical Specifications

• Actuator Type: Adjustable Handwheel
• Body Material: DZR Brass
• Dimensions: 3.74 inches long
• Domestic/Import: Import
• End Style: Solder
• Flow Rate: 2.35 gallons per minute
• Media: Water
• Nominal Size: 1/2 inch
• Pressure Class: 300 lb WOG
• Series: 9519AB
• Softgoods Material: PTFE Disc Gasket/EPDM Perox Disc O-Ring
• Temperature Rating: 15 to 260 degrees Fahrenheit
• Trim Material: DZR Brass
