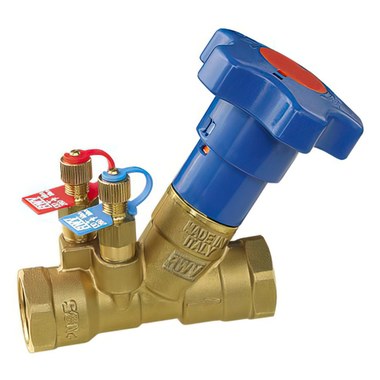

RED-WHITE VALVE CORP 9517AB-12 AB DZR Brass Balancing VLV THD

Product Description

RED-WHITE VALVE CORP 9517AB-12 is a hydronic balancing valve designed for HVAC and domestic water systems.

• Constructed from DZR brass with adjustable handwheel actuator
• Supports a flow rate of 0.98 gallons per minute
• Handles a temperature range of fifteen to two hundred sixty degrees Fahrenheit

Product Highlights

This valve features a fixed orifice design with an integral memory stop and provides positive shut-off.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779702155

Technical Specifications

• Actuator Type: Adjustable Handwheel
• Body Material: DZR Brass
• Dimensions: 3.46 inches long
• Domestic/Import: Import
• End Style: NPT
• Flow Rate: 0.98 gallons per minute
• Media: Water
• Nominal Size: 1/2 inches
• Pressure Class: 300 lb WOG
• Series: 9517AB
• Softgoods Material: PTFE Disc Gasket/EPDM Perox Disc O-Ring
• Temperature Rating: 15 to 260 degrees Fahrenheit
• Trim Material: DZR Brass
