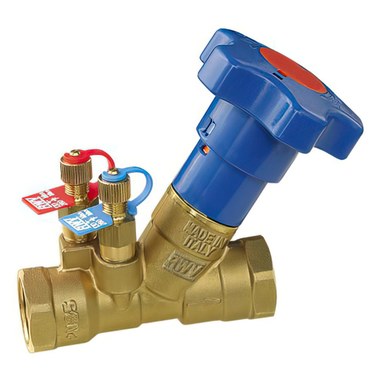

RED-WHITE VALVE CORP 9517AB-114 AB DZR BRASS BALANCING VLV THD 1-1/4

Product Description

The RED-WHITE VALVE CORP 9517AB-114 is a hydronic balancing valve designed for efficiency in water systems. This product features a nominal size of one and one-quarter inches with NPT threading. It can handle a maximum pressure of 300 pounds WOG and operates within a temperature range of fifteen to two hundred sixty degrees Fahrenheit. The valve allows a flow rate of eight point five six gallons per minute.

• Constructed from low lead DZR brass for durability.
• Includes an adjustable handwheel actuator for ease of operation.
• Built to meet industry standards for HVAC and domestic water applications.

Product Highlights

This valve's fixed orifice design contributes to its reliable performance in balancing water flows.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Nominal Size: 1-1/4 in

Technical Specifications

• Actuator Type: Adjustable Handwheel
• Body Material: DZR Brass
• Flow Rate: 8.56 gpm
• Pressure Class: 300 lb WOG
• Temperature Rating: 15 to 260 deg F
• Trim Material: DZR Brass
• Softgoods Material: PTFE Disc Gasket/EPDM Perox Disc O-Ring
• End Style: NPT
