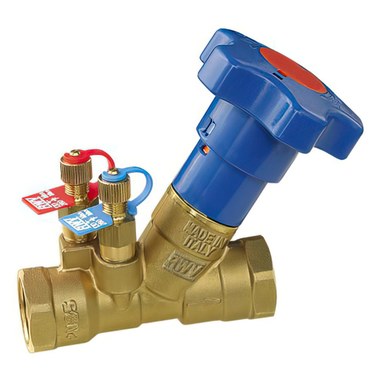

RED-WHITE VALVE CORP 9517AB-1 AB DZR BRASS BALANCING VLV THD

Product Description

RED-WHITE VALVE CORP 9517AB-1 is a hydronic balancing valve designed for effective flow regulation in HVAC systems. This valve is suitable for water media and features a nominal size of one inch with a durable DZR brass construction. The adjustable handwheel actuator allows for easy flow adjustments.

• Designed for HVAC and domestic water applications
• Fixed orifice design with integral memory stop
• Positive shut-off ensures reliable operation

Product Highlights

This hydronic balancing valve is built to perform under demanding conditions, with a flow rate of four point zero nine gallons per minute. It operates within a temperature range of fifteen to two hundred sixty degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779702179

Technical Specifications

• Actuator Type: Adjustable Handwheel
• Body Material: DZR Brass
• Dimensions: 3.94 inches long
• End Style: NPT
• Flow Rate: 4.09 gpm
• Media: Water
• Nominal Size: 1 inch
• Pressure Class: 300 lb WOG
• Temperature Rating: 15 to 260 degrees Fahrenheit
• Trim Material: DZR Brass
