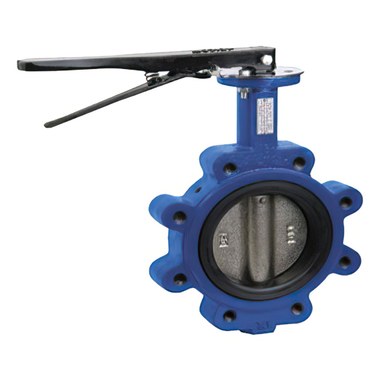

RED-WHITE VALVE CORP 938BNSL-8 BUTTERFLY LUG BRNZ DISC LVR 8 in

Product Description

RED-WHITE VALVE CORP offers the 938BNSL-8 Butterfly Valve, a lug style valve suitable for various applications. This valve is designed for a nominal size of eight inches and operates effectively from ten to one hundred eighty degrees Fahrenheit with water as the media.

• Bidirectional and dead end service capability
• NBR O-ring and seat for enhanced sealing
• ISO 5211 mounting flange for easy installation

Product Highlights

The 938BNSL-8 Butterfly Valve features a lever handle actuator for straightforward operation. The durable construction includes a ductile iron body and an aluminum bronze disc, ensuring reliability in commercial and industrial settings.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Nominal Size: 8 in

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Inlet to Outlet Length: 2.36 in
• Media: Water
• Series: 938
• Softgoods Material: NBR
• Temperature Rating: 10 to 180 deg F
• Stem & Pin Material: 416 Stainless Steel (Stem)/Stainless Steel (Taper Pin)
• Type: Lug Style
