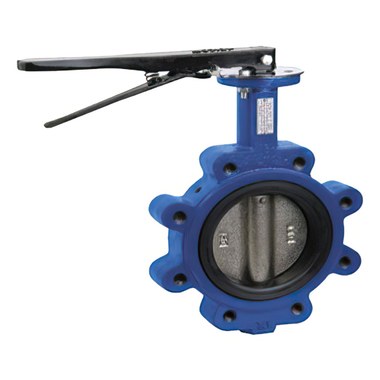

RED-WHITE VALVE CORP 938BNSL-4 BUTTERFLY LUG BRNZ DISC LVR

Product Description

RED-WHITE VALVE CORP offers the 938BNSL-4 butterfly valve, designed for various industrial applications. This valve features a lug style and operates effectively with water media. Its nominal size is four inches and supports a temperature range from ten to one hundred eighty degrees Fahrenheit.

• Lever handle actuator for easy operation
• Durable ductile iron body for robust performance
• Bidirectional flow capability

Product Highlights

This butterfly valve is suitable for both bidirectional and dead-end service, ensuring versatility in applications. It features an NBR O-ring for improved sealing capability and complies with ISO 5211 mounting standards for effective installation.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Nominal Size: 4 in

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Inlet to Outlet Length: 2.05 in
• Media: Water
• Series: 938
• Softgoods Material: NBR
• Temperature Rating: 10 to 180 deg F
