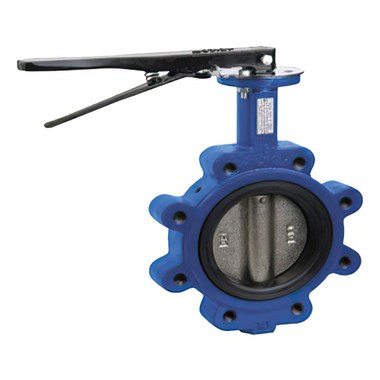

RED-WHITE VALVE CORP 938BNSL-3 BUTTERFLY LUG BRNZ DISC LVR

Product Description

The RED-WHITE VALVE CORP 938BNSL-3 is a butterfly lug valve designed for water applications. This valve features a lever handle actuator, allowing users to easily operate the mechanism. It measures three inches in nominal size and can handle temperatures ranging from ten to one hundred eighty degrees Fahrenheit.

• Lever handle actuator for easy operation.
• Designed for bidirectional and dead end service.
• NBR O-ring and mounting flange per ISO 5211 standards.

Product Highlights

This lug style butterfly valve is suitable for commercial and industrial use, ensuring reliable performance in various settings.

Product Information

Standard Information

• Type: Lug Style
• Media: Water

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Inlet to Outlet Length: 1.81 inches
• Nominal Size: 3 inches
• Series: 938
• Softgoods Material: NBR
• Stem & Pin Material: 416 Stainless Steel (Stem) / Stainless Steel (Taper Pin)
• Temperature Rating: 10 to 180 degrees Fahrenheit
