RED-WHITE VALVE CORP 938BESLAB-3 AB BUTTERFLY LUG BRNZ DISC LVR 3 in

Product Description

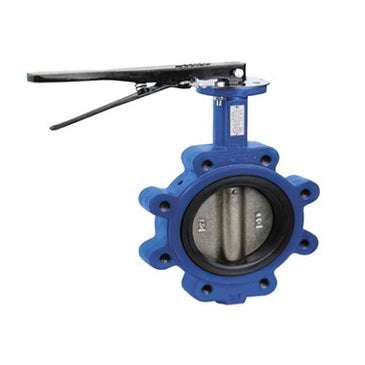

The RED-WHITE VALVE CORP 938BESLAB-3 is a three-inch AB butterfly lug valve designed for efficient flow control in various applications. This valve operates within a temperature range of negative thirty to two hundred seventy-five degrees Fahrenheit, making it suitable for water media. The lever handle actuator allows for easy operation, ensuring reliable functionality.

• Made from ductile iron with aluminum bronze disc
• Includes NBR O-ring and EPDM seat
• Compatible with bidirectional and dead-end service

Product Highlights

Designed for commercial and industrial use, this valve meets MSS-SP-67 standards and features an ISO 5211 mounting flange for easy installation.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779714103

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Inlet to Outlet Length: 1.81 inches
• Media: Water
• Nominal Size: 3 inches
• Series: 938
• Softgoods Material: NBR
• Stem & Pin Material: 416 Stainless Steel (Stem)/Stainless Steel (Taper Pin)
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Type: Lug Style
