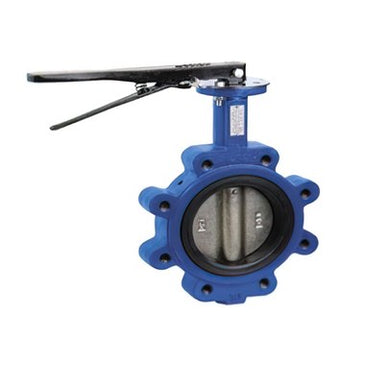

RED-WHITE VALVE CORP 938BESLAB-10 AB BUTTERFLY LUG BRNZ DISC LVR

Product Description

The RED-WHITE VALVE CORP 938BESLAB-10 is a ten-inch butterfly valve designed for rugged industrial use. This valve features a lug style construction with an aluminum bronze disc and a ductile iron body. It operates with a lever handle actuator and is suitable for water media.

• Temperature rating from negative thirty to two hundred seventy-five degrees Fahrenheit
• ISO 5211 compatible mounting flange
• Ideal for bidirectional and dead-end service

Product Highlights

This butterfly valve is built for reliability in commercial and industrial systems, ensuring efficient control over water flow.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Series: 938

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Inlet to Outlet Length: 2.68 inches
• Media: Water
• Nominal Size: 10 inches
• Softgoods Material: NBR
• Stem & Pin Material: 416 Stainless Steel (Stem)/Stainless Steel (Taper Pin)
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Type: Lug Style
