RED-WHITE VALVE CORP 9103F-34 BRS HOTWTR VENT ANGLE RADIATOR 3/4 in

Product Description

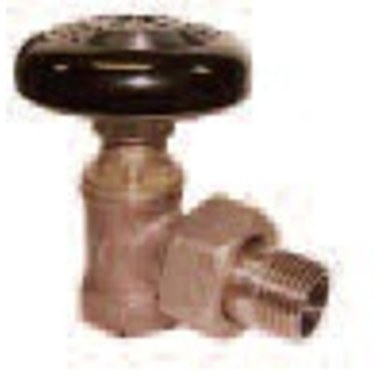

The RED-WHITE VALVE CORP 9103F-34 is a reliable hot water vented angle valve for radiators. This valve is made for standard applications and features a three-fourths inch nominal size for compatibility with various heating systems. The valve is designed to handle a pressure class of sixty pounds WOG, ensuring durability and efficiency in operation.

• Made with a brass body for longevity
• Includes a phenolic resin handwheel actuator for ease of use
• Top to inlet center measures three point zero nine inches

Product Highlights

This valve is suitable for residential and commercial heating systems. It offers reliable performance in hot water applications.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Standard Pack: Order quantity must be in multiples of 48

Technical Specifications

• Actuator Type: Phenolic Resin Handwheel
• Body Material: Brass
• Dimensions: 4.19 inches height
• End Style: FNPT x Male Union
• Nominal Size: 3/4 inches
• Pressure Class: 60 lb WOG
• Series: 9103F
• Softgoods Material: EPDM Perox Gasket/Zinc Plated Steel Washer
• Top to Inlet Center: 3.09 inches
• Trim Material: Brass/EPDM
• Type: Standard
