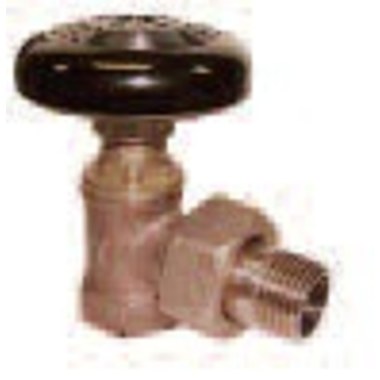

RED-WHITE VALVE CORP 9103F-12 BRS HOTWTR VENT ANGLE RADIATOR 1/2 in

Product Description

The RED-WHITE VALVE CORP 9103F-12 is a hot water vented angle valve designed for radiator systems. This valve features a half-inch nominal size with FNPT x Male Union connections, and a pressure rating of sixty pounds WOG.

• Brass body construction for durability.
• Phenolic resin handwheel for easy operation.
• EPDM perox gasket and zinc plated steel washer for secure sealing.

Product Highlights

This angle valve is essential for controlling water flow in heating applications, featuring a standard design suited for various radiator configurations.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779711317

Technical Specifications

• Actuator Type: Phenolic Resin Handwheel
• Body Material: Brass
• Dimensions: 4.04 in H
• End Style: FNPT x Male Union
• Nominal Size: 1/2 in
• Pressure Class: 60 lb WOG
• Series: 9103F
• Softgoods Material: EPDM Perox Gasket/Zinc Plated Steel Washer
• Top to Inlet Center: 3 in
• Trim Material: Brass/EPDM
• Type: Standard
