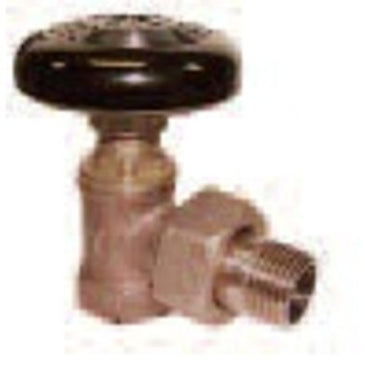

RED-WHITE VALVE CORP 9103F-114 BRS HOTWTR VENT ANGLE RADIATOR 1-1/4 in

Product Description

RED-WHITE VALVE CORP offers the 9103F-114 BRS Hot Water Vent Angle Radiator. This product allows for efficient venting and serves specific heating applications. It is designed to direct hot water effectively while maintaining proper pressure and flow.

• 1-1/4 inch nominal size suitable for various piping systems.
• FNPT x Male Union end style for easy connection.
• Constructed with a brass body for durability.

Product Highlights

The BRS Hot Water Vent Angle Radiator is essential for hot water heating systems. Its design aids in the removal of trapped air, ensuring optimal performance and energy efficiency.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Series: 9103F

Technical Specifications

• Actuator Type: Phenolic Resin Handwheel
• Body Material: Brass
• Dimensions: 4.66 inches high
• End Style: FNPT x Male Union
• Nominal Size: 1-1/4 inches
• Pressure Class: 60 lb WOG
• Softgoods Material: EPDM Perox Gasket/Zinc Plated Steel Washer
• Trim Material: Brass/EPDM
• Top to Inlet Center: 3-1/4 inches
