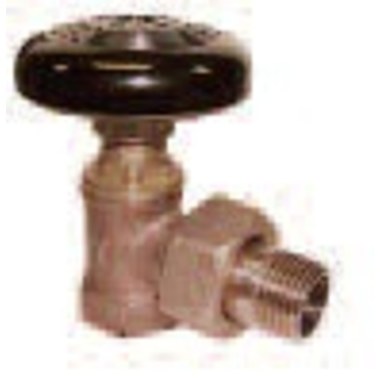

RED-WHITE VALVE CORP 9103F-1 BRS HOTWTR VENT ANGLE RADIATOR

Product Description

The RED-WHITE VALVE CORP 9103F-1 is a radiator hot water vent angle valve designed for reliable service. This model is part of the 9103F series and features a nominal size of one inch. It connects using FNPT x Male Union, making it suitable for various plumbing applications. The valve can handle a pressure class of sixty pounds WOG and utilizes a phenolic resin handwheel actuator for easy operation. Its brass body ensures durability and a long service life.

• FNPT x Male Union connection for versatility
• Constructed from brass with EPDM soft goods
• Compatible with temperatures and pressures suitable for hot water systems

Product Highlights

This valve is ideal for use in radiator systems and heating applications.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Series: 9103F

Technical Specifications

• Nominal Size: 1 in
• End Style: FNPT x Male Union
• Dimensions: 4.45 in H
• Pressure Class: 60 lb WOG
• Actuator Type: Phenolic Resin Handwheel
• Body Material: Brass
• Trim Material: Brass/EPDM
• Softgoods Material: EPDM Perox Gasket/Zinc Plated Steel Washer
• Top to Inlet Center: 3.28 in
