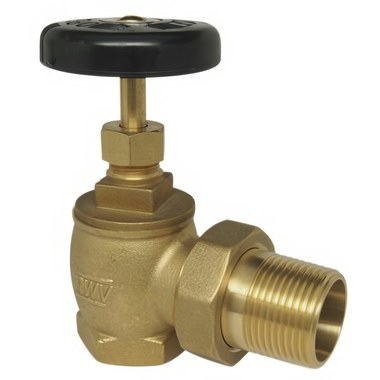

RED-WHITE VALVE CORP 9101F-34 STEAM RADIATOR ANGLE FxM UNION

Product Description

The RED-WHITE VALVE CORP 9101F-34 is a steam radiator angle valve. It features a nominal size of three-fourths of an inch and is designed with FNPT x Male Union ends. The valve is suitable for steam applications with a pressure class of sixty pounds WOG and fifteen pounds WSP. Built with a brass body, the valve includes a durable brass and EPDM trim. The softgoods material consists of a stainless steel washer and PTFE packing.

• Nominal size: 3/4 inches
• Brass body for durability
• Pressure rating: 60 lb WOG/15 lb WSP

Product Highlights

This steam radiator angle valve is essential for maintaining efficient heating systems. It provides reliable connections and optimal flow in steam applications, effectively meeting industry standards.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Type: Standard

Technical Specifications

• Body Material: Brass
• Dimensions: 4.19 inches height
• End Style: FNPT x Male Union
• Nominal Size: 3/4 inches
• Pressure Class: 60 lb WOG/15 lb WSP
• Series: 9101F
• Softgoods Material: Stainless Steel Washer/PTFE Packing
• Top to Inlet Center: 3.09 inches
• Trim Material: Brass/EPDM
