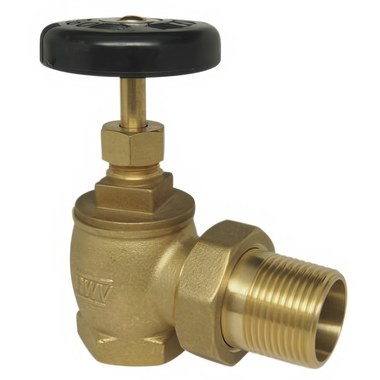

RED-WHITE VALVE CORP 9101F-114 STEAM RADIATOR ANGLE FxM UNION 1-1/4

Product Description

RED-WHITE VALVE CORP 9101F-114 is a steam radiator angle FxM union valve suitable for various heating applications. This valve is designed with a nominal size of one and one-quarter inches and features FNPT x male union threading. The robust brass body ensures durability in high-pressure conditions.

• Nominal size: one and one-quarter inches
• Pressure class rated at sixty pounds WOG and fifteen pounds WSP
• Features stainless steel washer with PTFE packing for effective sealing

Product Highlights

This valve provides reliable performance in steam heating systems, enabling efficient flow control and reliable connections.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Type: Standard

Technical Specifications

• Body Material: Brass
• Dimensions: 4.66 inches height
• End Style: FNPT x Male Union
• Nominal Size: 1-1/4 inches
• Pressure Class: 60 pounds WOG / 15 pounds WSP
• Series: 9101F
• Softgoods Material: Stainless Steel Washer / PTFE Packing
• Top to Inlet Center: 3-1/4 inches
• Trim Material: Brass / EPDM
