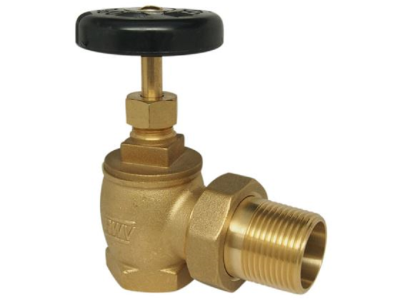

RED-WHITE VALVE CORP 9101F-1 STEAM RADIATOR ANGLE FxM UNION

Product Description

The RED-WHITE VALVE CORP 9101F-1 Steam Radiator Angle FxM Union is a specialized valve designed for steam radiator applications. This valve features a brass body with a trim made from brass and EPDM, ensuring durability and compatibility with various heating systems. It has a nominal size of one inch and connects via FNPT x Male Union, making it easy to integrate into existing piping. This valve operates at a pressure class of sixty pounds WOG and fifteen pounds WSP, suitable for residential and commercial heating.

• Brass body with stainless steel washer and PTFE packing
• Dimensions: 4.19 inches height and 3.28 inches top to inlet center
• Meets B124 C37700 standards for quality assurance

Product Highlights

This valve is ideal for replacing old or faulty radiator valves in heating systems, providing a reliable connection and excellent performance.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Series: 9101F

Technical Specifications

• Body Material: Brass
• Dimensions: 4.19 in H
• End Style: FNPT x Male Union
• Nominal Size: 1 in
• Pressure Class: 60 lb WOG/15 lb WSP
• Softgoods Material: Stainless Steel Washer/PTFE Packing
• Top to Inlet Center: 3.28 in
• Trim Material: Brass/EPDM
