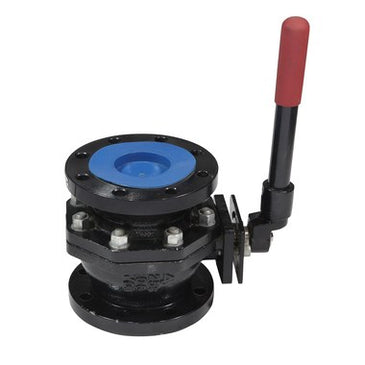

RED-WHITE VALVE CORP 5800L-4 FLANGED IRON BALL VALVE W/LVR

Product Description

The RED-WHITE VALVE CORP 5800L-4 is a flanged iron ball valve with a lever operated actuator. It features a nominal size of four inches and is designed to handle pressures up to two hundred pounds water column (WOG) and one hundred twenty-five pounds steam working pressure (WSP). The valve has a temperature rating of three hundred fifty-three degrees Fahrenheit.

• Full port design for optimal flow
• PTFE coated cast iron ball for durability
• Epoxy powder coating for corrosion resistance

Product Highlights

This valve is suitable for commercial and industrial applications, ensuring reliable performance in various systems.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779700649

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: PTFE Coated Cast Iron
• Body Material: Cast Iron
• End Style: Flanged
• Finish: Epoxy Powder Coated
• Inlet to Outlet Length: 9 inches
• Nominal Size: 4 inches
• Port Type: Full
• Pressure Rating: 200 lb WOG/125 lb WSP
• Series: 5800
• Softgoods Material: RPTFE/PTFE
• Temperature Rating: 353 degrees F
• Top to Inlet Center: 9.2 inches
• Trim Material: Stainless Steel Stem
