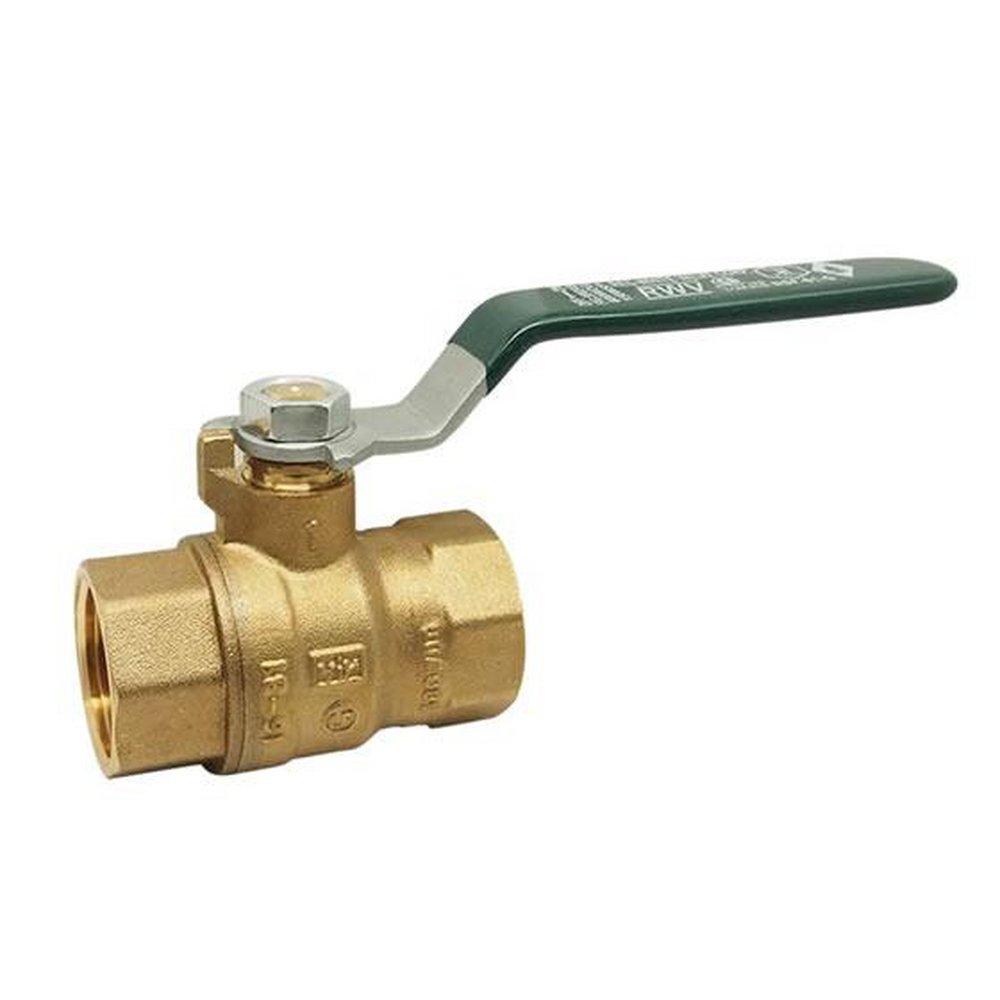

RED-WHITE VALVE CORP 5592AB-2 LOW LEAD BRASS FULL PORT BALL VALVE IPS

Product Description

The RED-WHITE VALVE CORP 5592AB-2 is a low lead brass full port ball valve with an IPS thread end style. This valve has a nominal size of two inches and supports a pressure rating of six hundred pounds WOG and one hundred fifty pounds WSP. It is engineered for use in applications that require a reliable flow control solution. The valve operates efficiently within a temperature range of fifteen to one hundred sixty degrees Fahrenheit.

• Blow-out proof stem
• Chrome plated low lead brass ball
• Adjustable packing nut

Product Highlights

This ball valve features a full port design, which allows for maximum flow capacity. Utilizing a two-piece construction, it is built for longevity and durability in demanding environments.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Type: 2-Piece

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Thread
• Inlet to Outlet Length: 4.09 inches
• Nominal Size: 2 inches
• Orifice Size: 1.95 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Series: 5592AB
• Softgoods Material: PTFE/FKM
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 3-1/4 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
