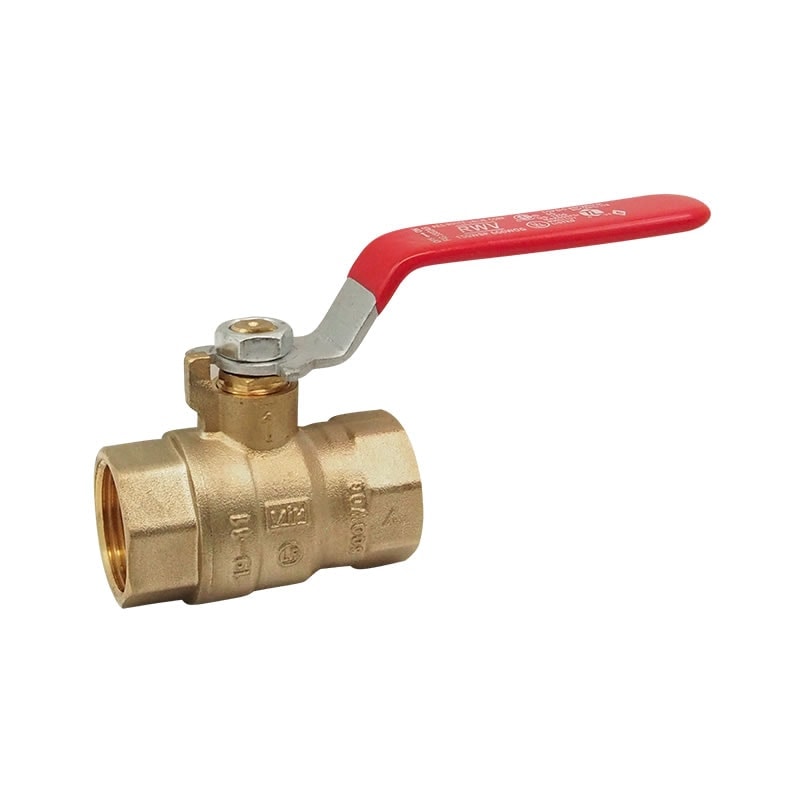

RED-WHITE VALVE CORP 5592AB-14 LOW LEAD BRASS FULL PORT BALL VALVE IPS

Product Description

The RED-WHITE VALVE CORP 5592AB-14 is a low lead brass full port ball valve. It features a nominal size of one-fourth inch with a thread end style. This valve is designed to handle a pressure rating of six hundred pounds WOG and one hundred fifty pounds WSP. The temperature range is from fifteen to one hundred sixty degrees Fahrenheit. The orifice size measures zero point thirty-nine inches, and the valve ensures minimal flow restriction.

• Blow-out proof stem
• Adjustable packing nut
• PTFE packing and FKM O-ring

Product Highlights

Ideal for plumbing applications requiring a reliable flow control with minimal lead content.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Series: 5592AB

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Thread
• Inlet to Outlet Length: 1.77 inches
• Nominal Size: 1/4 inch
• Orifice Size: 0.39 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG/150 lb WSP
• Softgoods Material: PTFE/FKM
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 1.54 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Type: 2-Piece
