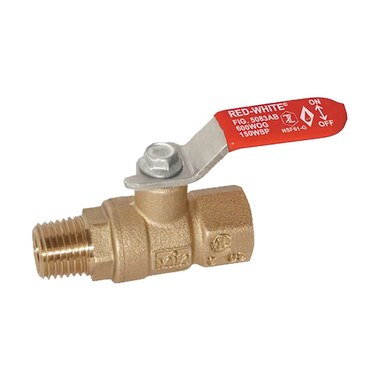

Red-White Valve Corp 5083AB-14 Low Lead Mini Ball FNPTxMNPT

Product Description

The Red-White Valve Corp 5083AB-14 is a low lead mini ball valve designed for efficient flow control. This valve features a MNPT x FNPT end style and is suitable for various applications. It operates under a pressure rating of six hundred pounds WOG and one hundred fifty pounds WSP. The temperature range for effective use is from fifteen to one hundred sixty degrees Fahrenheit.

• Chrome plated low lead brass ball
• Full port design with a 0.31 inch orifice
• Blow-out proof stem with FPM O-ring packing

Product Highlights

This valve is constructed with a brass body and low lead brass stem, ensuring durability in demanding applications. It is certified to meet ANSI and NSF standards for safety and quality.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5083AB-14

Technical Specifications

• Type: 2-Piece
• End Style: MNPT x FNPT
• Nominal Size: 1/4 inch
• Orifice Size: 0.31 inch
• Inlet to Outlet Length: 1.89 inches
• Top to Inlet Center: 1.09 inches
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Softgoods Material: FPM
• Series: 5083AB
• Port Type: Full
