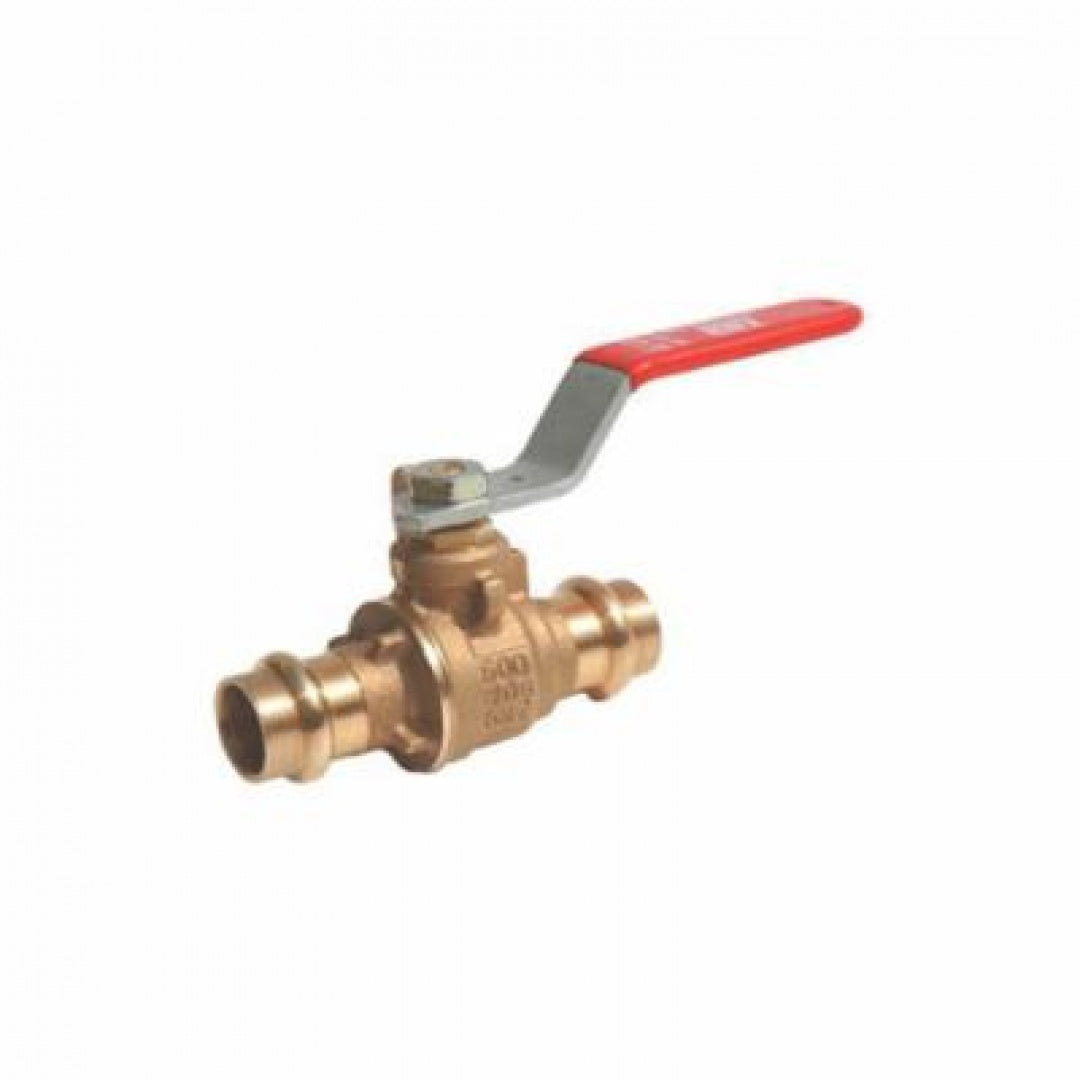

RED-WHITE VALVE CORP 50201 FEMALE EzPress BALL VALVE

Product Description

The RED-WHITE VALVE CORP 50201 is a female EzPress ball valve designed for various plumbing applications. This valve features dual female connections and is suitable for numerous plumbing systems.

• Full port design for maximum flow
• Temperature rating of up to 266 degrees Fahrenheit
• Pressure rating of 600 lb WOG

Product Highlights

The RED-WHITE VALVE 50201 is essential for connecting piping in residential and commercial plumbing setups. Its durable construction includes chrome plated brass and bronze materials, ensuring reliability and performance for long-term use.

Product Information

Standard Information

• Series: 5020
• Type: 2-Piece Standard

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Bronze
• End Style: Dual Female EzPress
• Inlet to Outlet Length: 4.57 inches
• Nominal Size: 1 inch
• Orifice Size: 0.98 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Softgoods Material: PTFE
• Temperature Rating: 266 degrees Fahrenheit
• Top to Inlet Center: 2.58 inches
• Trim Material: Brass Stem and PTFE Seat
• Manufacturer: RED-WHITE VALVE CORP
