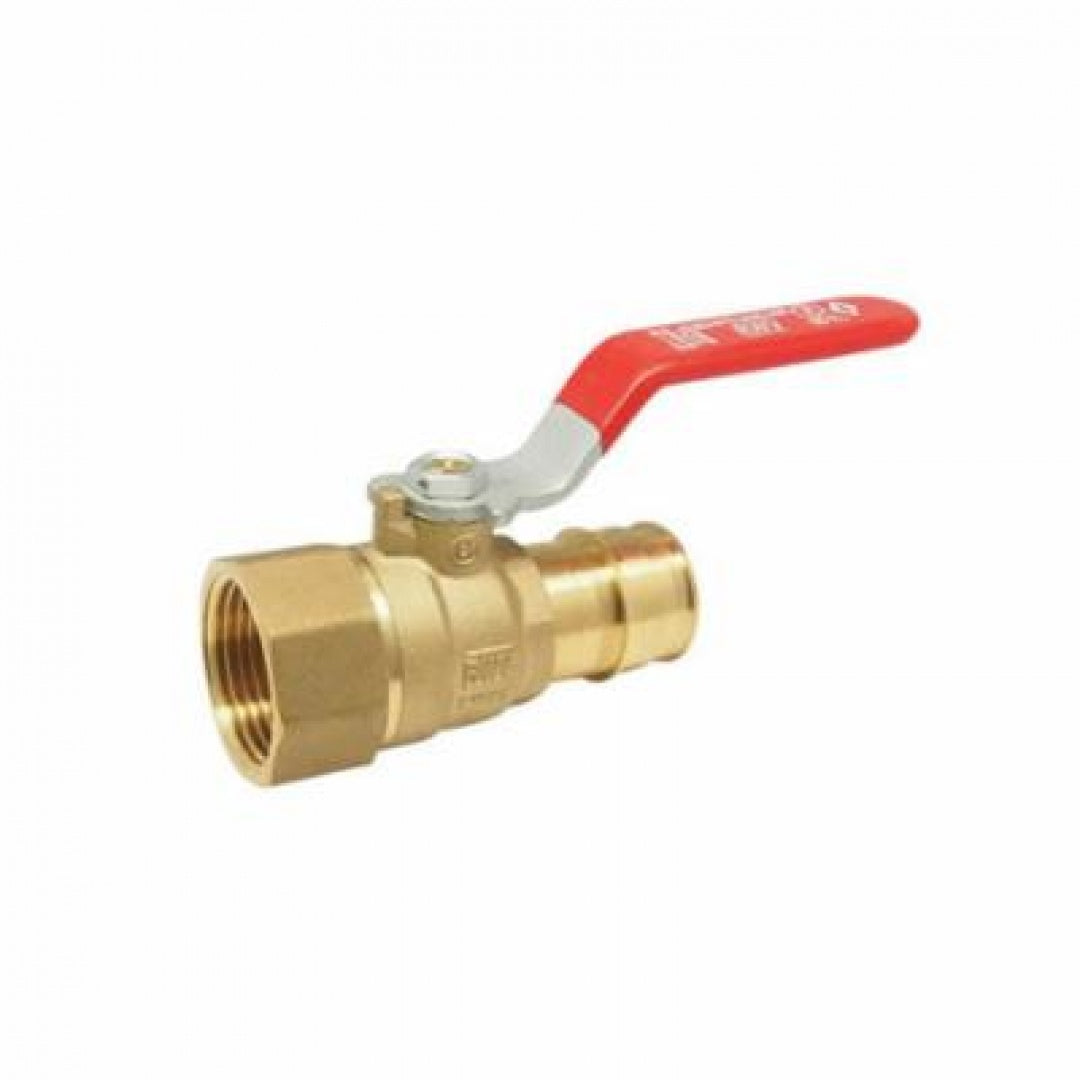

RED-WHITE VALVE CORP 5016AB 3/4 AB PEX F1960 X FNPT BALL VALVE

Product Description

The RED-WHITE VALVE CORP 5016AB3/4 is a robust AB PEX F1960 x FNPT ball valve. This valve is made from chrome plated low lead brass and is designed for PEX tubing. It is a lead-free solution suitable for various plumbing applications.

• Designed for use with PEX tubing.
• Operates efficiently from 15 to 160 degrees Fahrenheit.
• Constructed with a blow-out proof stem for reliability.

Product Highlights

This ball valve provides a regular port type with a 400 lb WOG rating. The compact design includes a 1/2 inch orifice and features double NBR softgoods for enhanced performance.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Series: 5016AB

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Barb x FNPT
• Inlet to Outlet Length: 2.71 inches
• Nominal Size: 3/4 inches
• Orifice Size: 1/2 inches
• Pressure Rating: 400 lb WOG
• Softgoods Material: Double NBR
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 1.77 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
