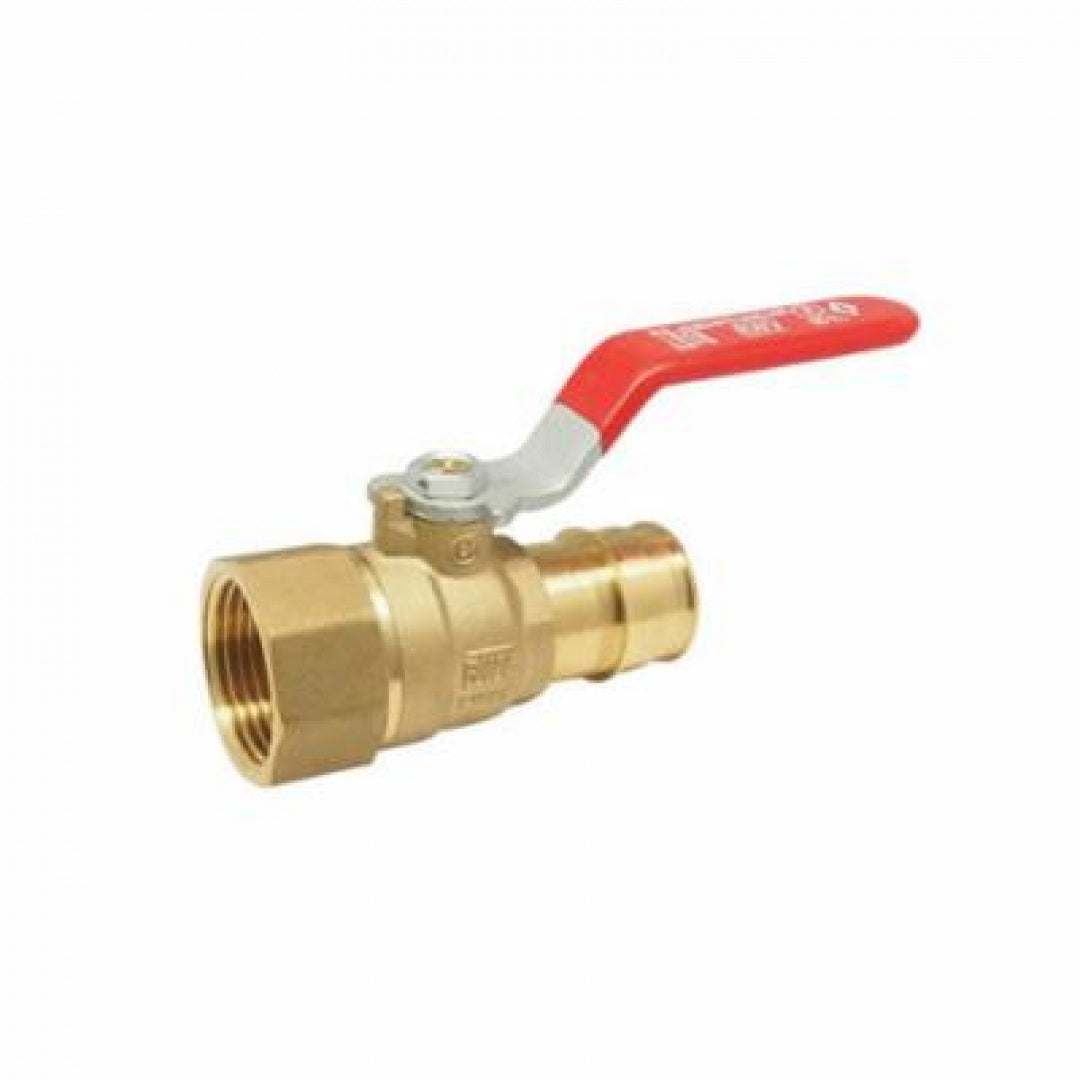

RED-WHITE VALVE CORP 5016AB 1/2 AB PEX F1960 X FNPT BALL VALVE

Product Description

The RED-WHITE VALVE CORP 5016AB 1/2 AB PEX F1960 X FNPT BALL VALVE is engineered for effective control in plumbing systems. This ball valve has a half-inch nominal size and features a barb to FNPT design. It is suitable for use with PEX tubing and operates under a pressure rating of four hundred pounds WOG, making it ideal for various plumbing applications.

• Constructed from chrome plated low lead brass.
• Operates within a temperature range of fifteen to one hundred sixty degrees Fahrenheit.
• Includes double NBR softgoods for enhanced durability.

Product Highlights

The 5016AB series valve ensures reliable performance with its blow-out proof stem and certifications for PEX expansion pipe fittings.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779709734

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Barb x FNPT
• Inlet to Outlet Length: 2-1/4 inches
• Nominal Size: 1/2 inches
• Orifice Size: 0.39 inches
• Port Type: Regular
• Pressure Rating: 400 lb WOG
• Series: 5016AB
• Softgoods Material: Double NBR
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 1.38 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
