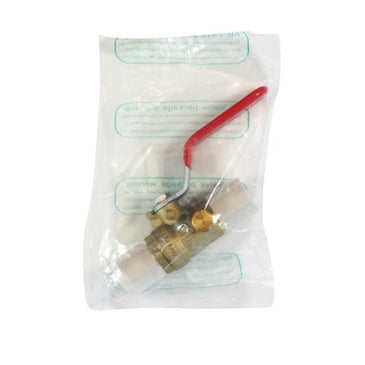

RED-WHITE VALVE CORP 5015ABD-3/4 AB PEX F1960 BALL VLV W/ DRAIN

Product Description

RED-WHITE VALVE CORP introduces the 5015ABD-3/4 AB PEX F1960 ball valve with drain. This valve is made from lead-free materials and is suitable for various plumbing applications. The valve features a barb end style and a pressure rating of four hundred pounds water over gas (WOG). It operates effectively in temperatures ranging from fifteen to one hundred sixty degrees Fahrenheit.

• Blow-out proof stem
• F1960 certified for PEX expansion
• Double NBR O-ring for sealing

Product Highlights

This ball valve is designed for use with PEX tubing, providing reliable performance in plumbing systems.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779709833

Technical Specifications

• Series: 5015ABD
• Nominal Size: 3/4 in
• Orifice Size: 1/2 in
• Body Material: Brass
• Ball Material: Chrome Plated Low Lead Brass
• Port Type: Regular
• Pressure Rating: 400 lb WOG
• Temperature Rating: 15 to 160 deg F
• Inlet to Outlet Length: 3.23 in
• Top to Inlet Center: 1.77 in
• Softgoods Material: Double NBR
• Trim Material: Low Lead Brass Stem and PTFE Seat
