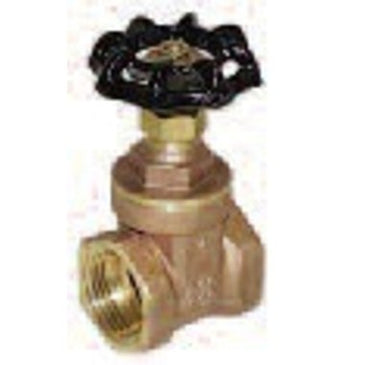

RED-WHITE VALVE CORP 26734 BRASS GATE VALVE IPS

Product Description

The RED-WHITE VALVE CORP brass gate valve, model 26734, is a reliable choice for various plumbing applications. This valve has a standard design and a nominal size of three-fourths of an inch. It features a handwheel actuator and is constructed from durable cast brass.

• Thread end style for easy installation
• Rated for 200 lb WOG pressure
• Temperature rating of 212 degrees Fahrenheit

Product Highlights

This valve is well-suited for both residential and commercial use. Its solid wedge disc and non-rising stem design enhance its durability and performance.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779267050

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: Thread
• Hand Wheel Diameter: 0.68 inches
• Inlet to Outlet Length: 1.77 inches
• Nominal Size: 3/4 inches
• Pressure Rating: 200 lb WOG
• Series: 267
• Softgoods Material: PTFE Gasket, Packing
• Temperature Rating: 212 degrees Fahrenheit
• Top to Inlet Center: 3.15 inches
• Trim Material: Brass
• Type: Standard
