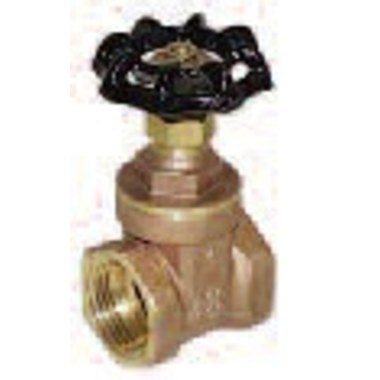

RED-WHITE VALVE CORP 2672 BRASS GATE VALVE IPS 2 IN

Product Description

The RED-WHITE VALVE CORP 2672 Brass Gate Valve IPS is designed for standard applications in piping systems. This gate valve has a nominal size of two inches and features a handwheel actuator. It has a robust cast brass body and operates under a pressure rating of 200 lb WOG. The inlet to outlet length is two point forty-nine inches, and the top to inlet center measures five point forty-three inches.

• Suitable for various plumbing and HVAC applications
• Non-rising stem for space-saving installation
• Solid wedge disc for reliable sealing

Product Highlights

This valve offers durability and efficiency for professionals in the plumbing field. It is compatible with threaded end styles, ensuring easy installation in existing systems.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• MPN: 2672

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: Thread
• Hand Wheel Diameter: 1.73 inches
• Inlet to Outlet Length: 2.49 inches
• Nominal Size: 2 inches
• Pressure Rating: 200 lb WOG
• Series: 267
• Softgoods Material: PTFE Gasket, Packing
• Temperature Rating: 212 degrees F
• Top to Inlet Center: 5.43 inches
• Trim Material: Brass
