RED-WHITE VALVE CORP 26712 BRASS GATE VALVE IPS 1/2 in

Product Description

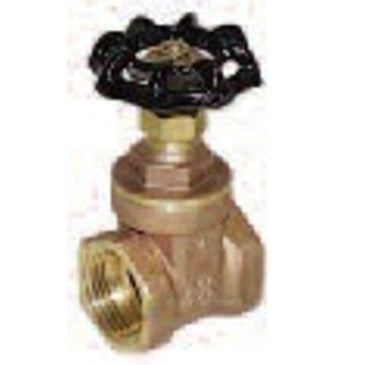

The RED-WHITE VALVE CORP 26712 is a brass gate valve designed for use in various plumbing applications. It features a nominal size of one-half inch and a thread end style. The valve is rated for two hundred pounds water, oil, or gas pressure and can withstand temperatures up to two hundred twelve degrees Fahrenheit.

• Durable cast brass body
• Handwheel actuator for easy operation
• Non-rising stem design

Product Highlights

This gate valve effectively controls the flow of fluids in plumbing systems. Its solid wedge disc design ensures a tight seal when closed.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Type: Standard

Technical Specifications

• Nominal Size: 1/2 in
• Pressure Rating: 200 lb WOG
• Temperature Rating: 212 deg F
• Body Material: Cast Brass
• Trim Material: Brass
• Actuator Type: Handwheel
• End Style: Thread
• Inlet to Outlet Length: 1.65 in
• Top to Inlet Center: 2-3/4 in
• Hand Wheel Diameter: 1/2 in
• Softgoods Material: PTFE Gasket, Packing
• Series: 267
