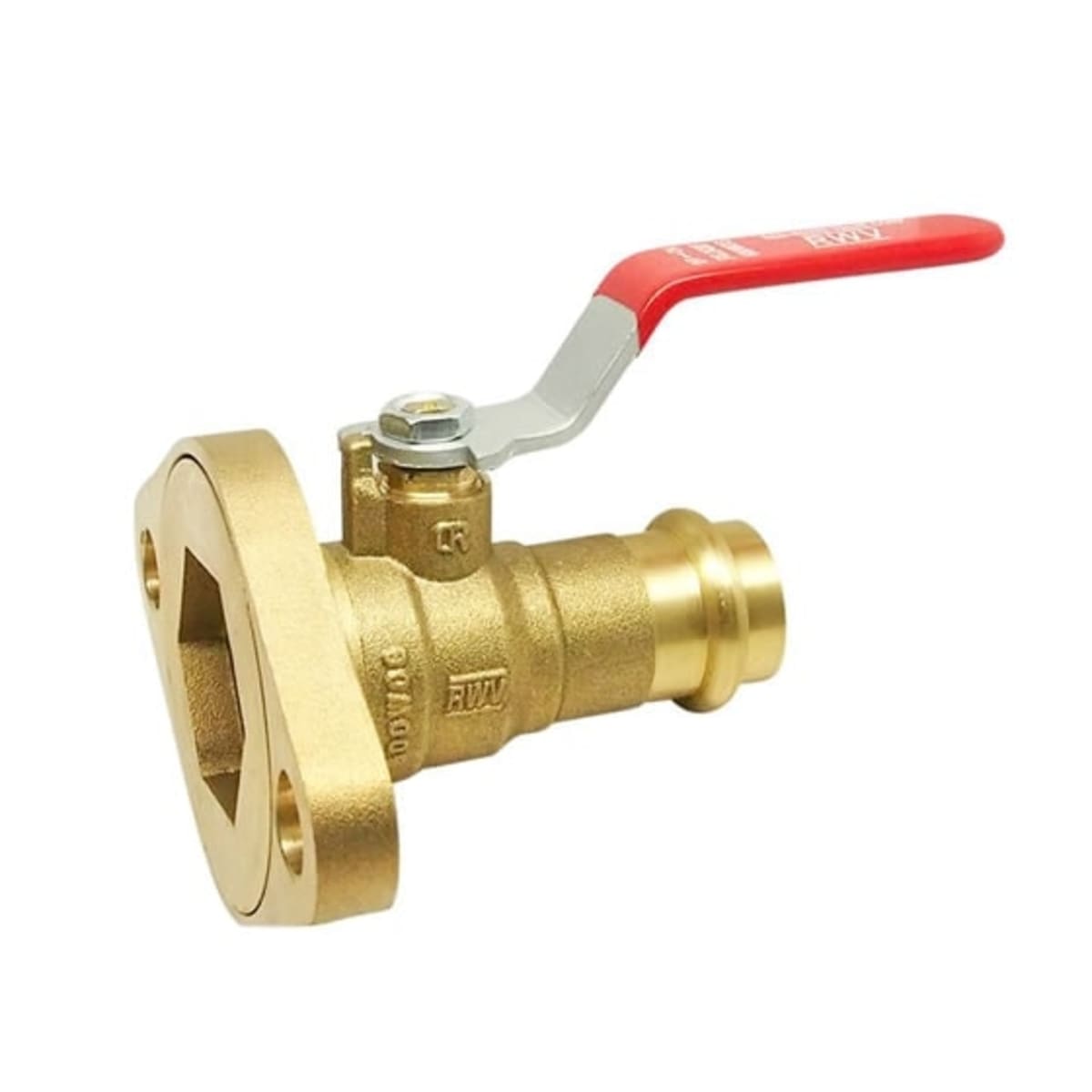

RED-WHITE VALVE CORP 2420F 1-1/4 PUMP FLANGE BALL VLV EzPress

Product Description

The RED-WHITE VALVE CORP 2420F1-1/4 is a quarter-turn ball valve designed for robust fluid control. This valve features a 3-piece body construction and utilizes a rotating pump flange with an EzPress connection. Suitable for various applications, this valve is rated for 600 lb WOG, making it ideal for high-pressure systems.

• Full port design with a 1.22-inch orifice.
• Durable chrome-plated brass ball and brass body construction.
• Wing handle actuator for easy operation.

Product Highlights

This valve effectively minimizes pressure drop and provides reliable shut-off capabilities. Compatibility with different piping systems makes it versatile for HVAC and plumbing applications.

Product Information

Standard Information

• MPN: 2420F1-1/4
• Manufacturer: RED-WHITE VALVE CORP

Technical Specifications

• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: EzPress x Rotating Pump Flange
• Inlet to Outlet Length: 4.15 inches
• Nominal Size: 1-1/4 inches
• Orifice Size: 1.22 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Series: 2420F
• Softgoods Material: PTFE/FKM/EPDM
• Top to Inlet Center: 2.6 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 3-Piece
