Product Description

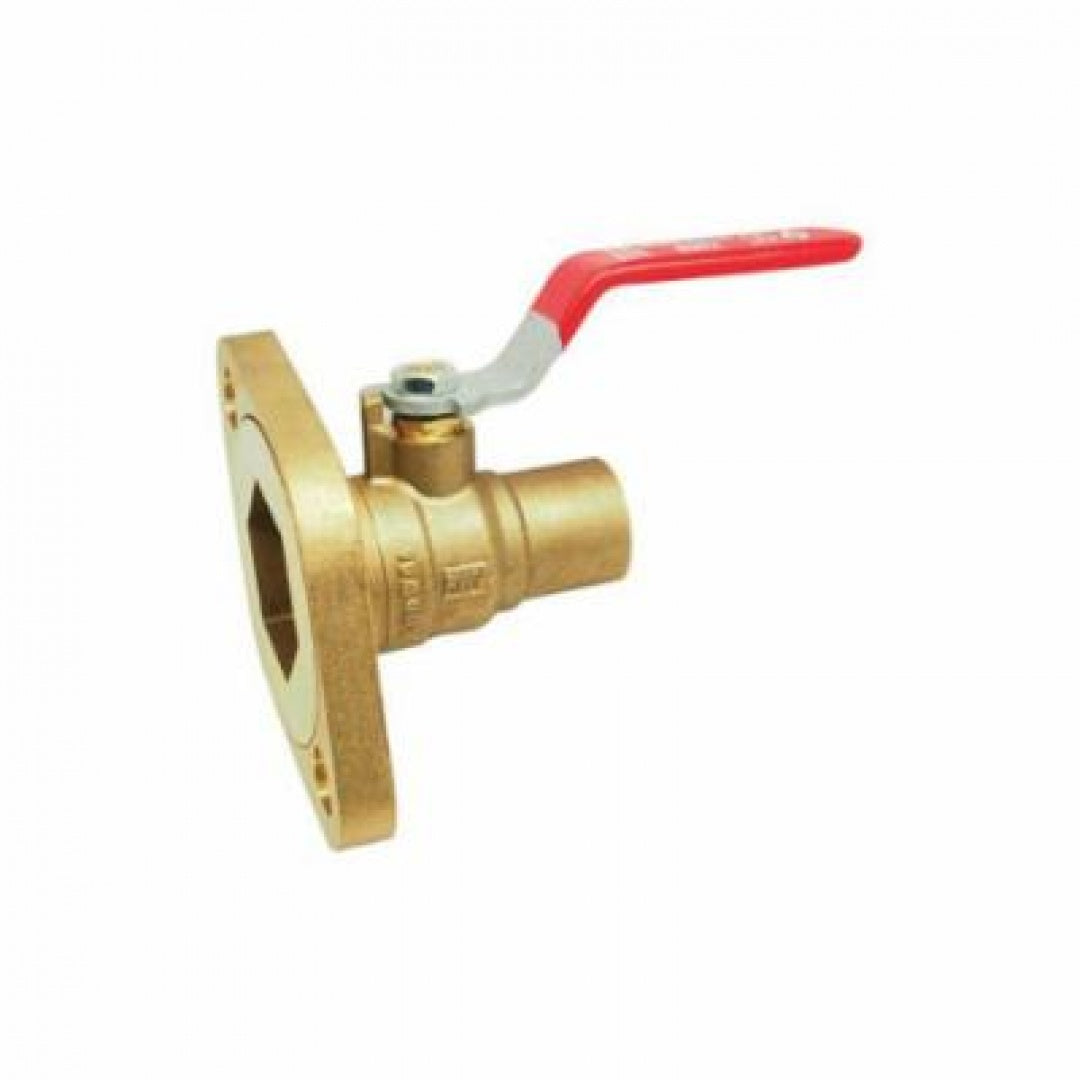

The RED-WHITE VALVE 2419AB 1-1/4 is a quarter-turn ball valve designed for efficient flow control in various plumbing applications. This valve features a solder x rotating pump flange connection and operates at a pressure rating of six hundred pounds working pressure. The chrome plated brass ball ensures durability, while the low lead brass construction provides safety in potable water applications.
- Positive shut-off with wing handle actuator.
- Full port design for maximum flow.
- Compliant with industry standards for lead content.
Product Highlights
Ideal for use in residential and commercial plumbing to control water flow safely and effectively.
Product Information
Standard Information
-
Manufacturer: RED-WHITE VALVE CORP
-
MPN: 2419AB 1-1/4
Technical Specifications
-
Type: 3-Piece Standard
-
Nominal Size: 1-1/4 in
-
Orifice Size: 1.22 in
-
Pressure Rating: 600 lb WOG
-
Body Material: Brass
-
Ball Material: Chrome Plated Brass
-
Trim Material: Low Lead Brass Stem and PTFE Seat
-
Actuator Type: Wing Handle
-
End Style: Solder x Rotating Pump Flange
-
Inlet to Outlet Length: 3.58 in
-
Top to Inlet Center: 2.58 in
-
Softgoods Material: PTFE/FKM
