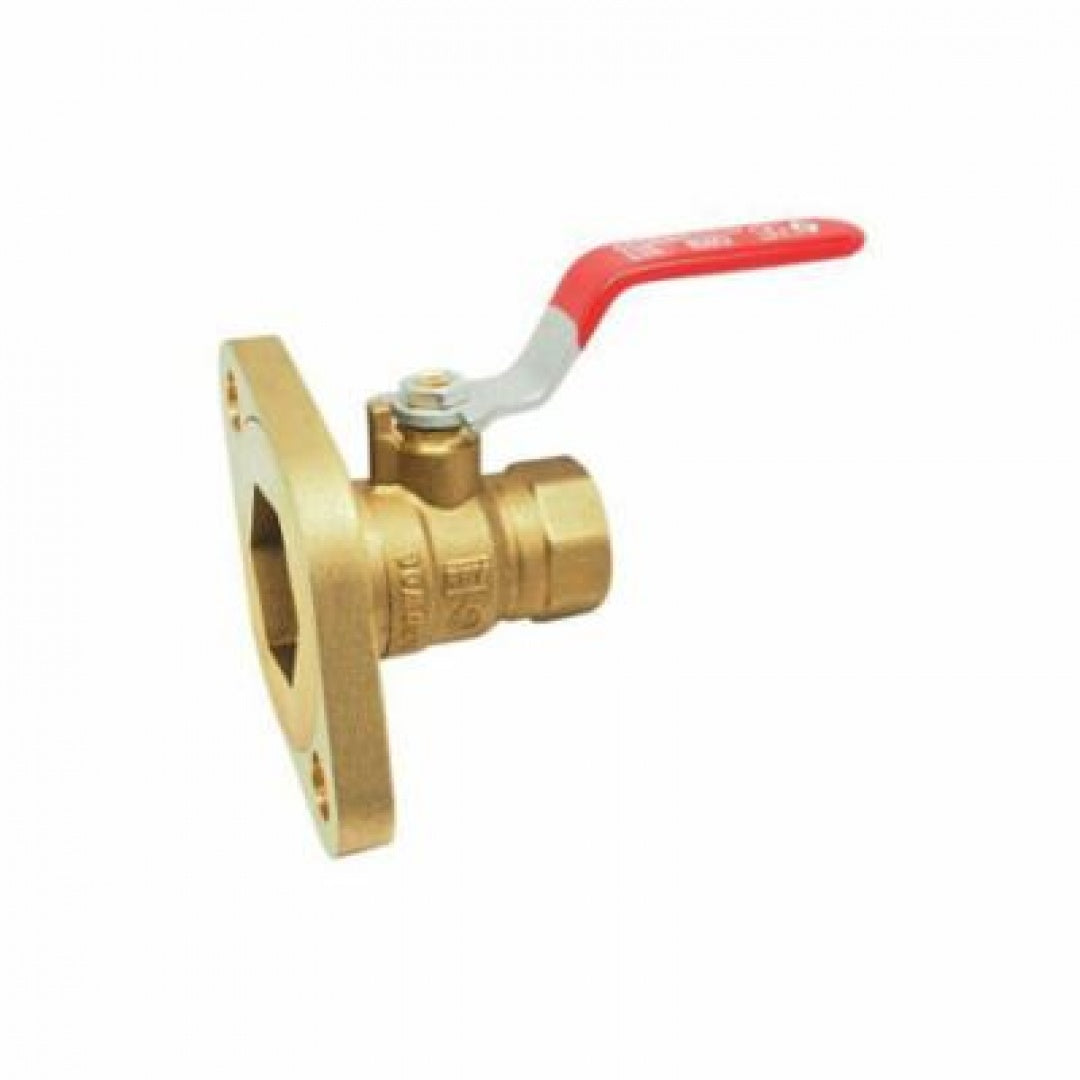

RED-WHITE VALVE CORP 2417AB 3/4 Low Lead Pump Flng Bll Vlv Ips

Product Description

RED-WHITE VALVE CORP presents the 2417AB 3/4 low lead pump flange ball valve. This valve features a three-piece construction and is designed for use in plumbing and HVAC applications. It has a nominal size of three-quarters of an inch and can handle a pressure rating of six hundred pounds WOG. The valve includes a full port, which provides an unrestricted flow path.

• Three-piece body design for easy maintenance.
• Chrome plated brass ball ensures durability.
• PTFE packing ring with FKM O-ring guarantees leak-free performance.

Product Highlights

This product is suitable for various plumbing tasks. It provides reliable service with low lead content, making it compliant with safety standards.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Type: 3-Piece

Technical Specifications

• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: FNPT x Rotating Pump Flange
• Inlet to Outlet Length: 2-1/2 inches
• Nominal Size: 3/4 inches
• Orifice Size: 0.73 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Softgoods Material: PTFE/FKM
• Top to Inlet Center: 2.07 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Series: 2417AB
