Red-White Valve 2417AB 1 Low Lead Pump Flng BLL VLV IPS

Product Description

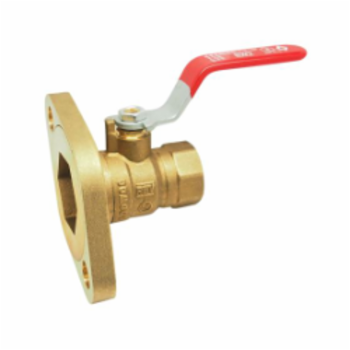

The Red-White Valve 2417AB 1 is a low lead pump flanged ball valve designed for reliable performance in fluid handling applications. This product features a three-piece body construction and is suitable for various industrial settings.

• Positive shut-off function
• Chrome plated brass ball for durability
• Pressure rating of six hundred pounds WOG

Product Highlights

This valve offers excellent resistance to corrosion and is built to comply with safety standards such as AB1953 and ANSI NSF 61-G/372.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 2417AB 1

Technical Specifications

• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: FNPT x Rotating Pump Flange
• Inlet to Outlet Length: 2.81 inches
• Nominal Size: 1 inch
• Orifice Size: 0.94 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Series: 2417AB
• Softgoods Material: PTFE/FKM
• Top to Inlet Center: 2.36 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Type: 3-Piece
