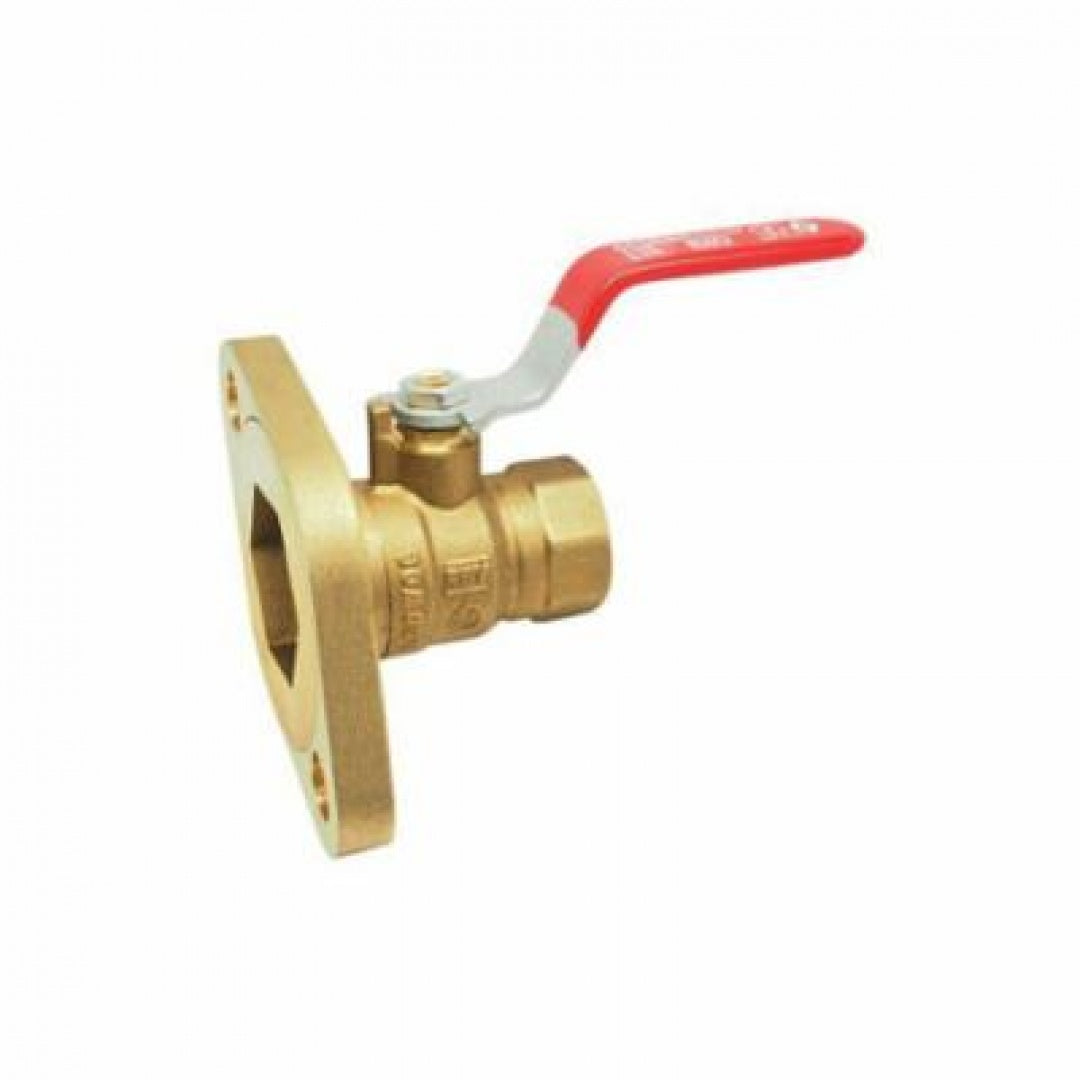

Red-White Valve Corp 2417AB 1-1/2 Low Lead Pump Flange Ball Valve Full Port

Product Description

The Red-White Valve Corp 2417AB 1-1/2 Low Lead Pump Flange Ball Valve is designed for various fluid control applications. This three-piece valve features a full port, allowing maximum flow with minimal pressure drop. The valve is equipped with a wing handle actuator for ease of operation and a rotating pump flange for flexible installation. The brass body, combined with a chrome-plated brass ball and PTFE seat trim, ensures durability and reliability.

• Keeps low lead compliance
• 600 lb WOG pressure rating
• PTFE packing ring for enhanced sealing

Product Highlights

The Red-White Valve Corp 2417AB 1-1/2 Ball Valve is designed for efficient fluid control in HVAC systems, plumbing, and various industrial applications. It features a positive shut-off with a PTFE packing ring and FKM O-ring, ensuring reliable performance and leak prevention. This valve also meets AB1953 and ANSI NSF 61-G/372 standards, making it suitable for potable water systems.

Product Information

Standard Information

• Type: 3-Piece
• Series: 2417AB
• End Style: FNPT x Rotating Pump Flange
• Manufacturer: Red-White Valve Corp

Technical Specifications

• Nominal Size: 1-1/2 in
• Orifice Size: 1.46 in
• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Pressure Rating: 600 lb WOG
• Softgoods Material: PTFE/FKM
• Top to Inlet Center: 2.87 in
• Inlet to Outlet Length: 3.7 in
