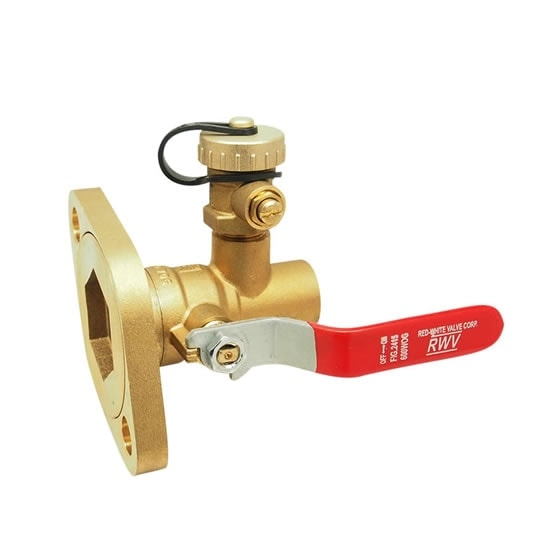

RED-WHITE VALVE CORP 24153/4 SWT PUMP FLANGE BALL W/DRAIN 3/4 in

Product Description

RED-WHITE VALVE CORP 24153/4 SWT Pump Flange Ball W/DRAIN is a quarter-turn ball valve designed for reliable operation. The valve features a three-piece construction made from durable materials, ensuring longevity in various applications.

• Positive shut-off function
• Includes a side drain valve with cap
• Utilizes EPDM packing for optimal sealing

Product Highlights

This ball valve is suitable for both residential and industrial plumbing where a stable flow control is required.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779227054

Technical Specifications

• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Rotating Pump Flange x Solder
• Inlet to Outlet Length: 3.13 in
• Nominal Size: 3/4 in
• Orifice Size: 0.87 in
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Series: 2415
• Softgoods Material: EPDM
• Top to Inlet Center: 1.69 in
• Trim Material: Brass Stem and PTFE Seat
• Type: 3-Piece Standard
