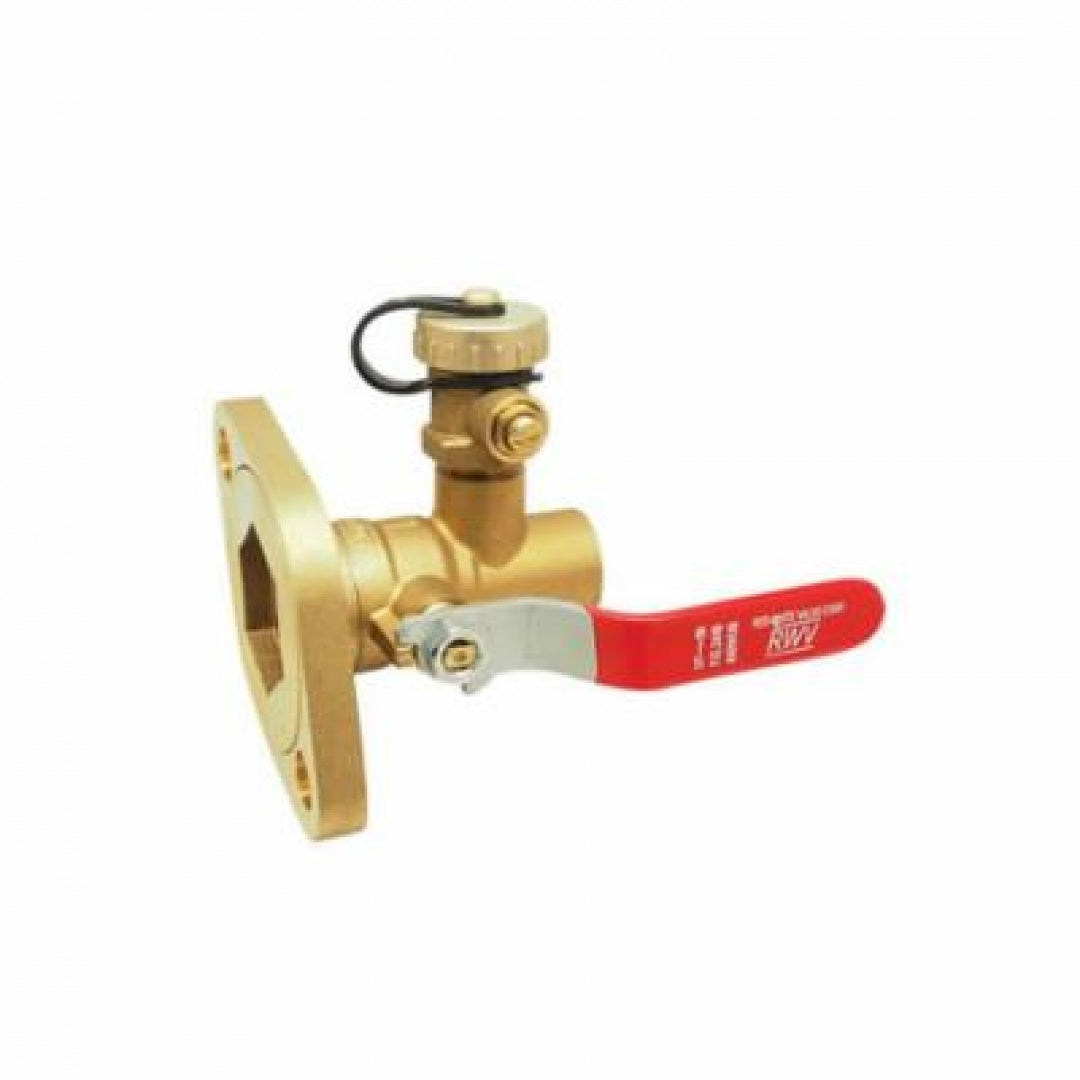

RED-WHITE VALVE CORP 24153/4 SWT PUMP FLANGE BALL W/DRAIN

Product Description

The RED-WHITE VALVE CORP 24153/4 is a quarter-turn ball valve designed for reliable flow control in a variety of plumbing applications. This three-piece standard valve features a rotating pump flange connection and solder ends. It can withstand a pressure rating of six hundred pounds water working pressure (WOG) and is equipped with a positive shut-off mechanism.

• Includes side drain valve with cap
• Constructed with EPDM packing for durability
• Chrome plated brass ball for enhanced strength

Product Highlights

This valve is suitable for use in various systems where efficient flow regulation is necessary.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Type: 3-Piece Standard

Technical Specifications

• MPN: 24153/4
• Nominal Size: 3/4 in
• Orifice Size: 0.87 in
• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Rotating Pump Flange x Solder
• Pressure Rating: 600 lb WOG
• Inlet to Outlet Length: 3.13 in
• Top to Inlet Center: 1.69 in
• Trim Material: Brass Stem and PTFE Seat
• Softgoods Material: EPDM
• Series: 2415
