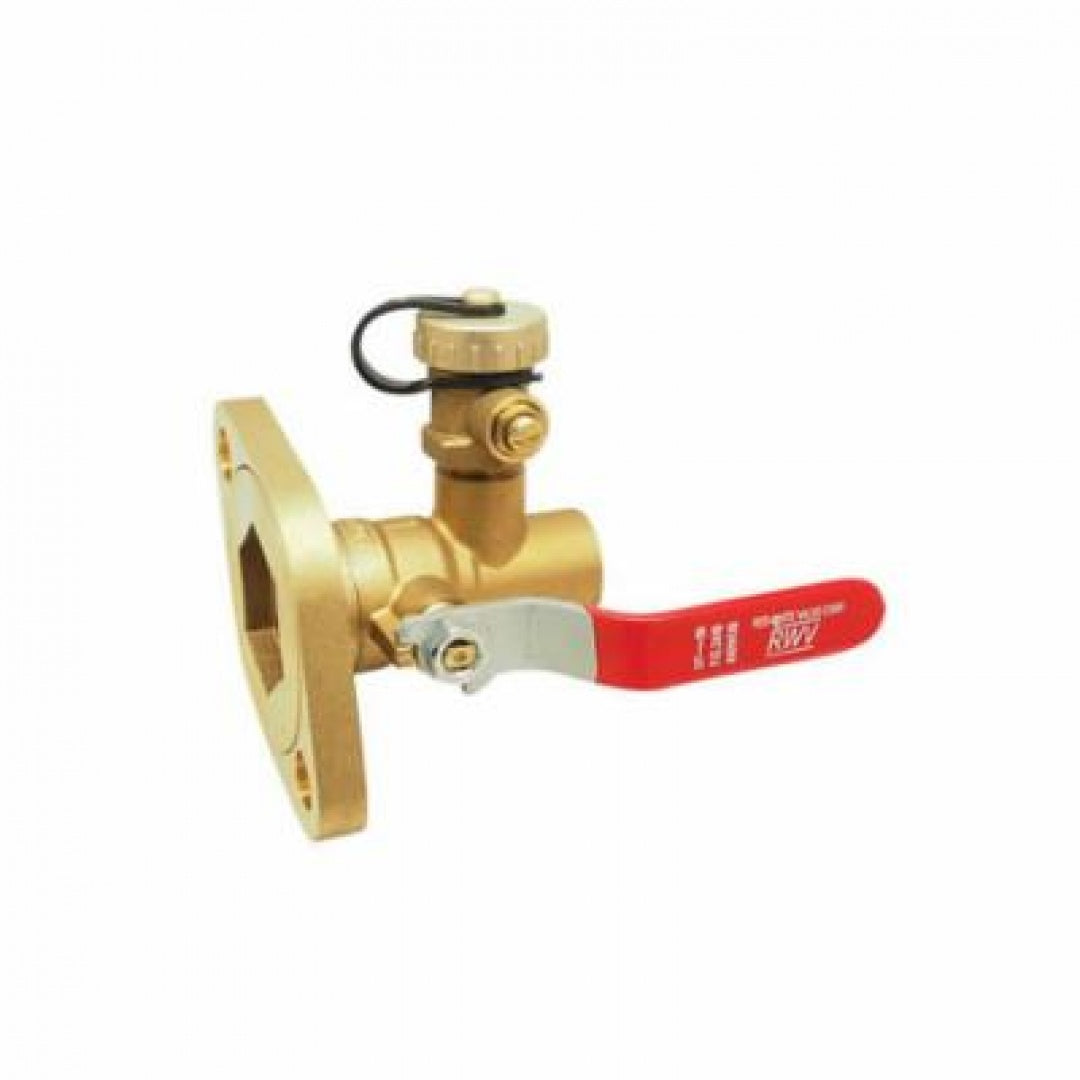

Red-White Valve 2415 1-1/4 Swt Pump Flange Ball w/ Drain

Product Description

The Red-White Valve 2415 1-1/4 SWT Pump Flange Ball with Drain, known for its reliable performance, offers a robust solution for various plumbing applications. This valve ensures a positive shut-off and includes a side drain valve with a cap.

• 1-1/4 inch nominal size
• Rotating pump flange x solder
• 600 lb WOG pressure rating

Product Highlights

Engineered with a wing handle actuator and chrome-plated brass ball, it is durable and long-lasting. Ideal for full-port applications, this 3-piece standard valve has a brass body, brass stem, PTFE seat trim, and an EPDM packing ring for reliable sealing.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Series: 2415

Technical Specifications

• Nominal Size: 1-1/4 inches
• End Style: Rotating Pump Flange x Solder
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Trim Material: Brass Stem and PTFE Seat
• Softgoods Material: EPDM
• Orifice Size: 1.37 inches
• Inlet to Outlet Length: 3.83 inches
• Top to Inlet Center: 2.4 inches
