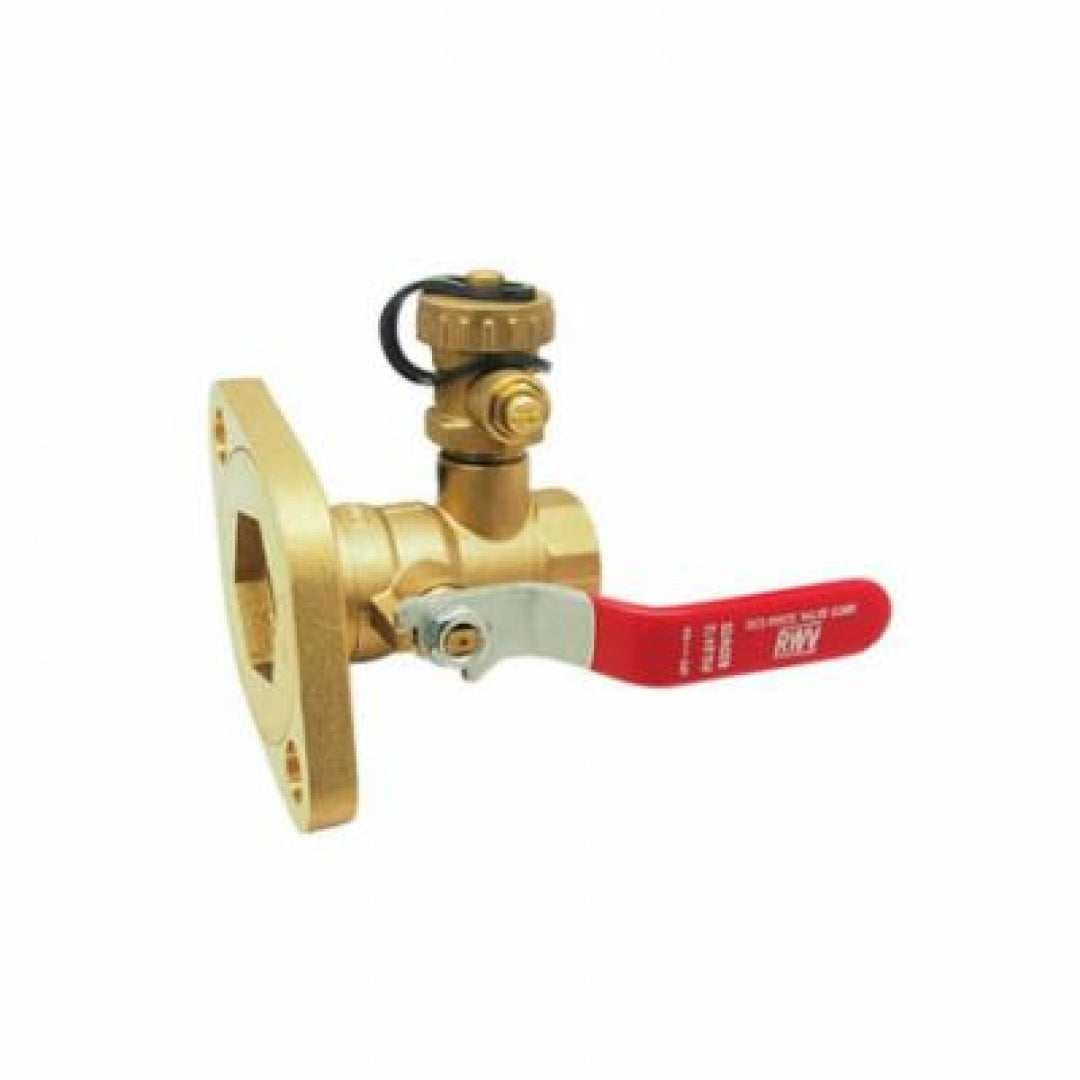

RED-WHITE VALVE CORP 2412 3/4 FNPT PUMP FLANGE BALL W/DRAIN

Product Description

RED-WHITE VALVE CORP offers the 2412 3/4 FNPT Pump Flange Ball Valve with Drain. This valve is designed for easy operation and is compatible with various plumbing and pumping systems. The three-piece standard construction ensures durability and reliability in any application.

• Positive shut-off capability
• Includes a side drain valve with cap
• Made with EPDM packing for long-lasting performance

Product Highlights

This ball valve features a chrome plated brass ball and a robust brass body, providing a full port design that minimizes pressure loss.

Product Information

Standard Information

• Type: 3-Piece Standard
• Manufacturer: RED-WHITE VALVE CORP

Technical Specifications

• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Rotating Pump Flange x FNPT
• Inlet to Outlet Length: 3.03 inches
• Nominal Size: 3/4 inches
• Orifice Size: 1.4 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Series: 2412
• Softgoods Material: EPDM
• Top to Inlet Center: 1.69 inches
• Trim Material: Brass Stem and PTFE Seat
