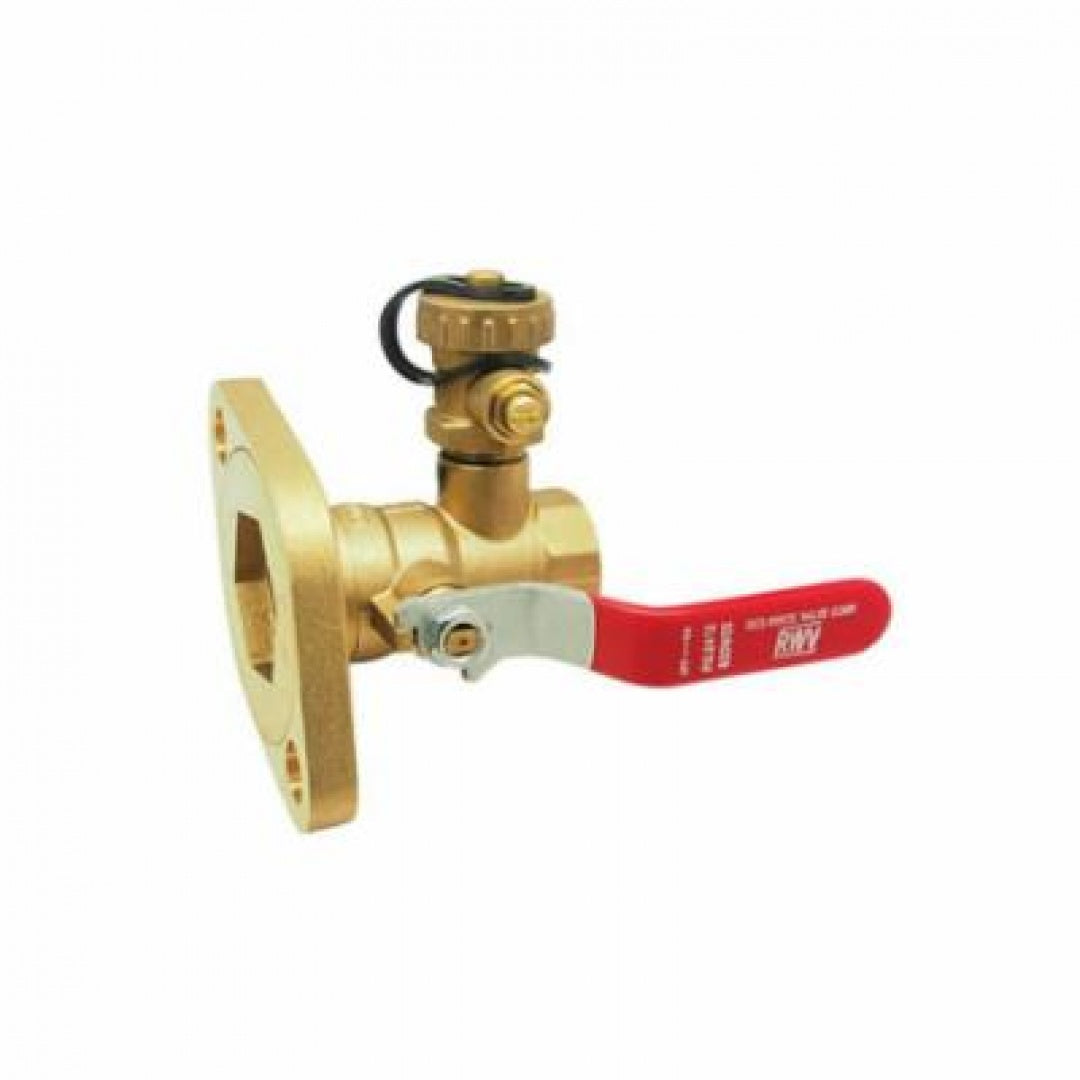

RED-WHITE VALVE CORP 2412 1-1/4 FNPT PUMP FLANGE BALL W/DRAIN

Product Description

The RED-WHITE VALVE CORP 2412 1-1/4 FNPT pump flange ball valve is designed for effective control in plumbing applications. This valve features a quarter-turn design for smooth operation and easy shut-off.

• Full port for maximum flow
• Includes side drain valve with cap
• Constructed with chrome-plated brass ball

Product Highlights

This ball valve is suitable for various fluid control needs, providing a reliable connection in pump systems.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• MPN: 2412 1-1/4

Technical Specifications

• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Rotating Pump Flange x FNPT
• Inlet to Outlet Length: 3.66 inches
• Nominal Size: 1-1/4 inches
• Orifice Size: 1.18 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Series: 2412
• Softgoods Material: EPDM
• Top to Inlet Center: 2.4 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 3-Piece Standard
