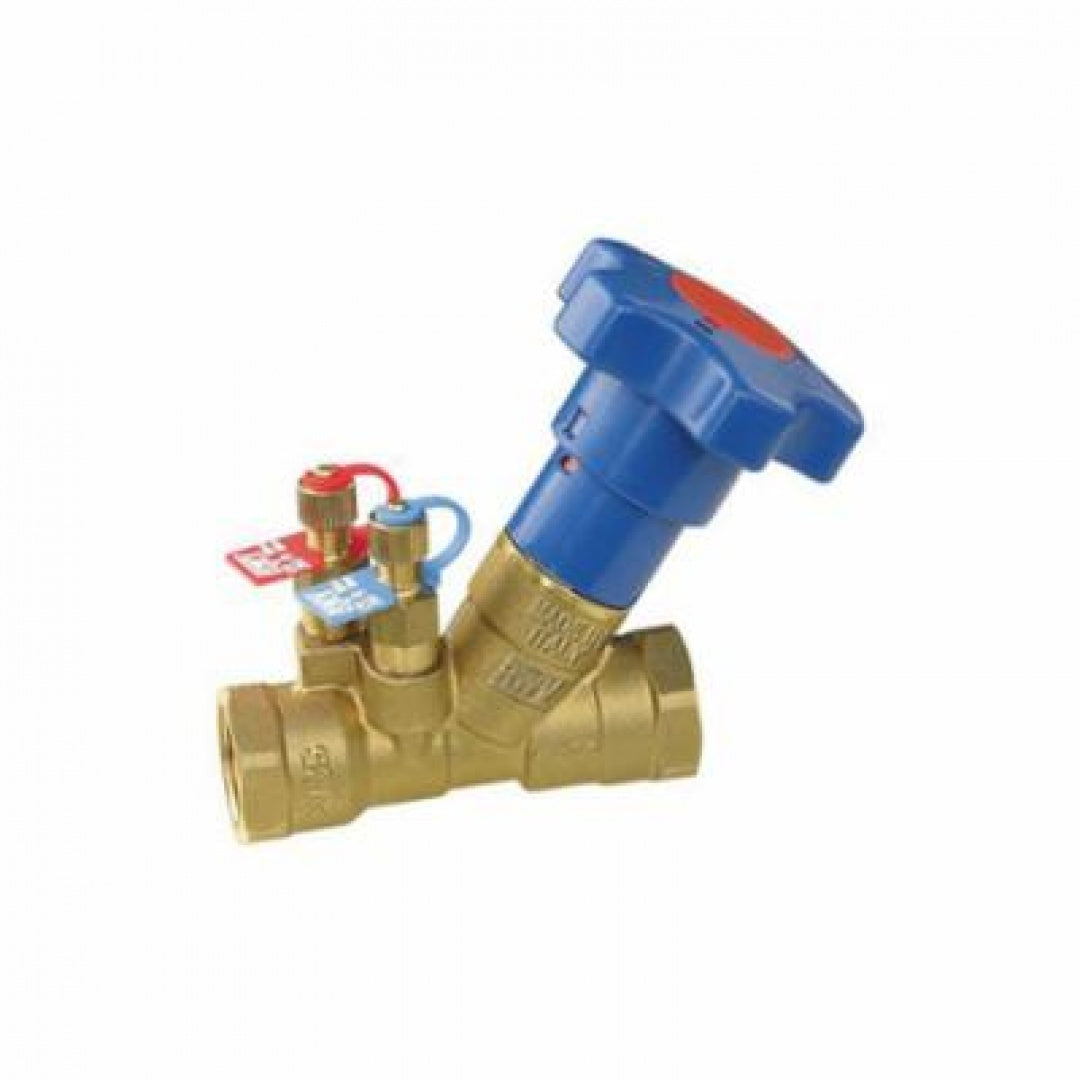

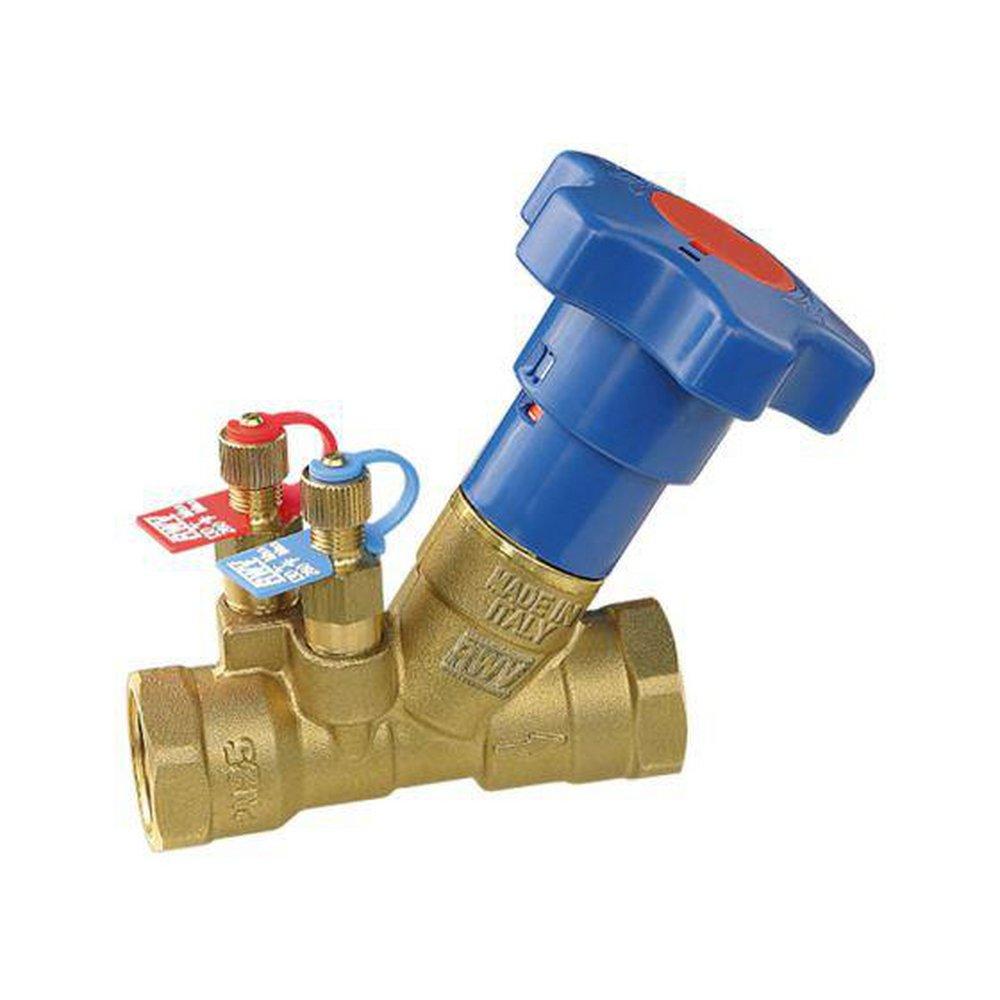

Red-White Valve 9517AB 1-1/2 in Threaded Balancing Valve

Product Description

The Red-White Valve 9517AB 1-1/2 in threaded balancing valve is designed for effective water flow regulation in HVAC and domestic applications. It features a fixed orifice design and an adjustable handwheel actuator for ease of use.

• Body and trim made from DZR brass ensuring durability
• Temperature rating from fifteen to two hundred sixty degrees Fahrenheit
• Flow rate capability of twelve point eighty-four gallons per minute

Product Highlights

This balancing valve is ideal for managing water flow in heating systems and is compliant with relevant industry standards.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Part Number: 9517AB1-1/2

Technical Specifications

• Actuator Type: Adjustable Handwheel
• Body Material: DZR Brass
• Dimensions: 5 inches Long
• End Style: NPT
• Flow Rate: 12.84 gpm
• Media: Water
• Nominal Size: 1-1/2 inches
• Pressure Class: 300 lb WOG
• Series: 9517AB
• Softgoods Material: PTFE Disc Gasket / EPDM Perox Disc O-Ring
• Temperature Rating: 15 to 260 degrees Fahrenheit
• Trim Material: DZR Brass
