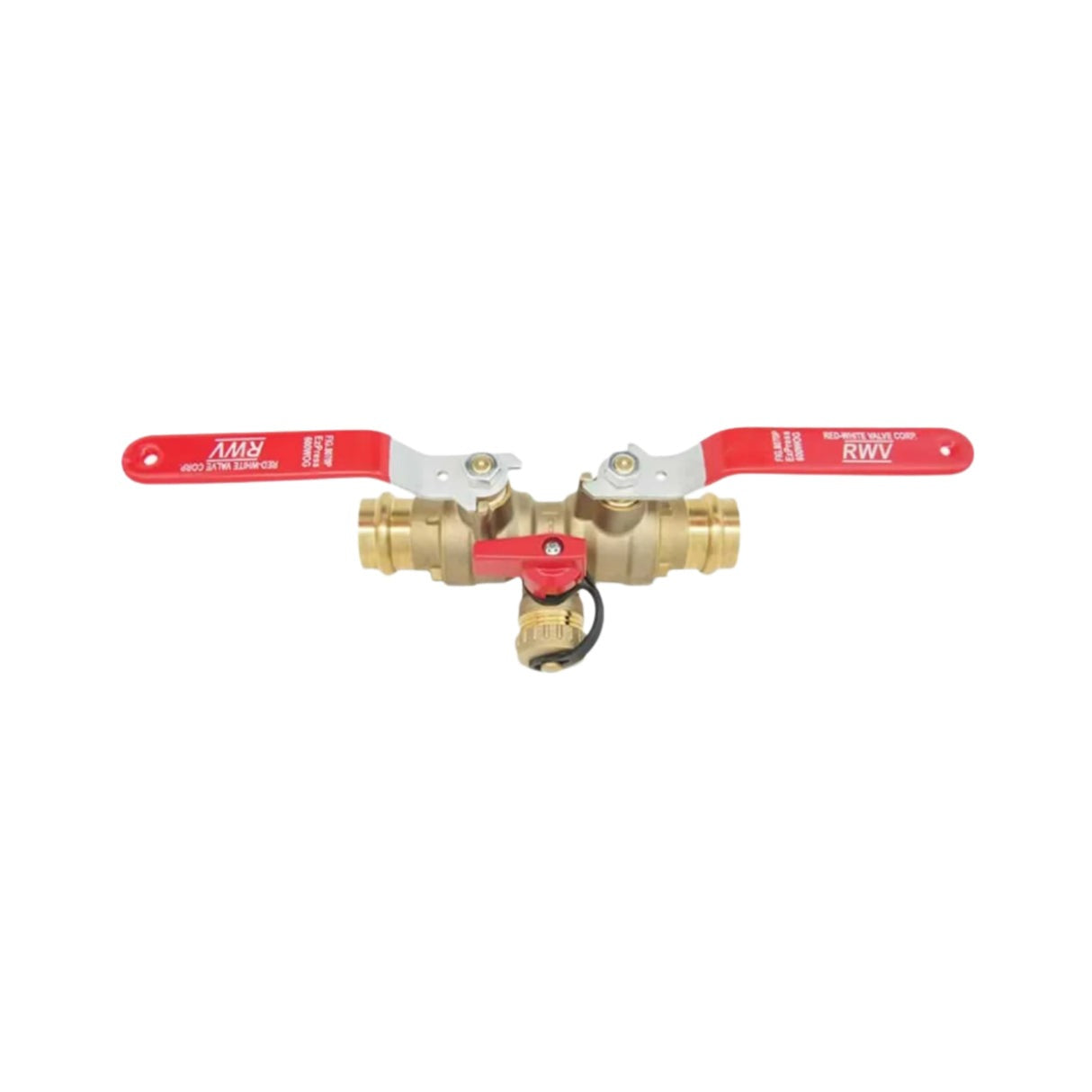

Red-White Valve 8070P3/4 Double ball isolation valve (3/4)

Brand: RED-WHITE VALVE
SKU: 8070P3/4
Availability: In Stock

Ships same day if ordered by 12 pm
$79.74
$79.74
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Red-White Valve 8070P3/4 is a double-ball isolation drain valve with EzPress ends designed for sectional isolation and draining in hydronic systems. Its dual-ball design allows mid-line isolation for servicing without full system depressurization. Constructed of DZR lead-free brass with chrome-plated full-port balls, PTFE seats, and EPDM O-rings, it is rated 250 PSI WOG and operates from 15 F to 260 F (-9 C to 127 C) with a 3/4 inch NH high-flow drain.

  • Double-ball isolation enables section-by-section servicing without full system depressurization.
  • EzPress connections for solder-free installation plus a high-flow 3/4 inch NH drain port with cap and chain.
  • DZR lead-free brass body, chrome-plated full-port balls, PTFE seats, EPDM O-rings; 250 PSI WOG rating.

Product Highlights

Double-ball isolation valve with EzPress ends, 250 PSI WOG, DZR lead-free brass, 3/4 inch NH high-flow drain.

Product Information

Standard Information

  • Brand: RED-WHITE VALVE
  • Manufacturer Part Number: 8070P3/4
Technical Specifications
Brand
Red-White Valve
MPN
8070P3/4
Series
8070P Series
Type
Double-ball isolation drain valve
Connections
EzPress (press connection) with 3/4 inch NH drain outlet
Drain Port
3/4 inch NH outlet with cap and chain (high-flow)
Size
3/4 inch
Pressure Rating
250 PSI WOG
Temperature Range
15 F to 260 F (-9 C to 127 C)
Body Material
DZR lead-free brass (ASTM B927 C27453)
Ball Material
Lead-free brass, chrome plated (full-port)
Seat Material
Virgin PTFE
O-Ring Material
EPDM Peroxide 70SH (NSF approved)
Flow
Full-port
Certifications
NSF/ANSI 61 and 372; AB1953 lead-free
Intended Use
HVAC, process cooling, commercial loop maintenance, hydronic systems
