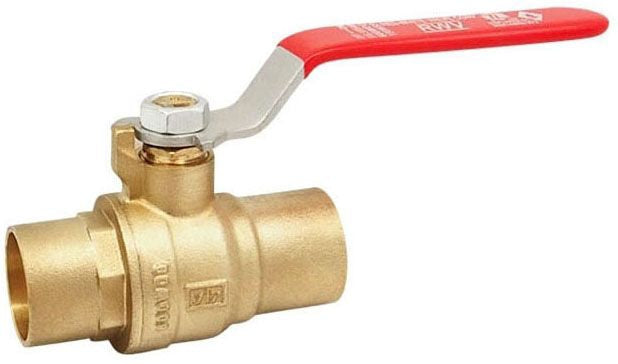

Red-White Valve 5595AB1-1/4 lf ball valve 1-1/4 inch

Product Description

The RED-WHITE VALVE 5595AB1-1/4 is a 2-piece, full port ball valve with a 1-1/4 inch nominal size, designed for residential applications. It features a CW510L brass body, stem, and chrome plated brass ball, along with PTFE seal and seat materials. This valve is rated for 150 PSI SWP at 366 Deg F and 600 PSI WOG at 15 to 160 Deg F, making it suitable for various plumbing and fluid control systems.

• 2-Piece design for easy maintenance
• ANSI/NSF 61G/372 compliant for safety and quality
• Blow-out proof stem for enhanced safety and adjustable packing nut for reliable sealing

Product Highlights

Durable CW510L brass construction, full port design, and lever actuation for efficient residential fluid control.

Product Information

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 5595AB1-1/4

Technical Specifications

• Type: 2-Piece
• Nominal Size: 1-1/4 Inch
• Applicable Standard: ANSI/NSF 61G/372
• Application: Residential
• Temperature Rating: 366 Deg F
• Features: Blow-Out Proof Stem, Adjustable Packing Nut
• Body Material: CW510L Brass
• Pressure Rating: 150 PSI SWP at 366 Deg F, 600 PSI WOG at 15 to 160 Deg F
• End Connection: Soldered x Soldered
• Handle Material: ASTM A36 Dacromet Steel
• Seal Material: PTFE
• End to End Distance: 3.9 Inch
• Actuation Type: Lever
• Seat Material: PTFE
• Stem Material: CW510L Brass
• Port Type: Full
• Ball Material: CW510L Chrome Plated Brass
• Sub-Brand: ECO-VALVE
• Handle Nut Material: ASTM A36 Zinc Plated Steel
• Model: 5595AB
