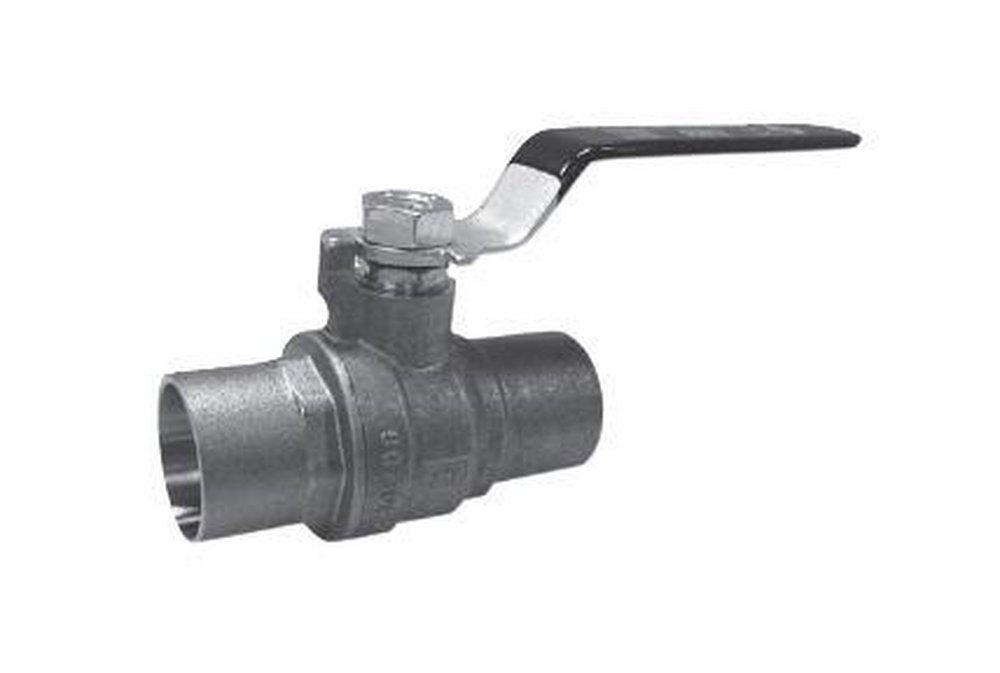

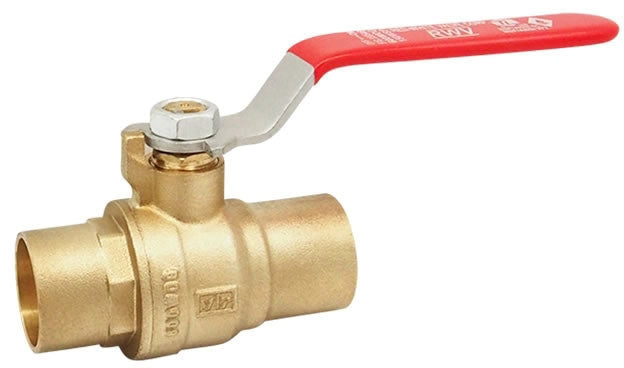

Red-White Valve 5595AB-34 Figure 5595AB 3/4 in. Brass Full Port Solder 600# Ball Valve

Product Description

The Red-White Valve 5595AB-34 is a reliable ball valve designed for various plumbing applications. This valve is made of brass, ensuring durability and longevity. The product is suitable for solder connections and can handle a maximum pressure rating of six hundred pounds for water and one hundred fifty pounds for steam.

• Material: Lead-free brass with a chrome-plated finish.
• Full port design allows for maximum flow capacity.
• Temperature range from fifteen to one hundred sixty degrees Fahrenheit.

Product Highlights

This ball valve features an adjustable packing nut and a blow-out proof stem. It is compliant with standards such as AB1953 and NSF/ANSI 61 & 372, making it a safe choice for residential and commercial use.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5595AB-34

Technical Specifications

• Nominal Size: 3/4 in
• Inlet to Outlet Length: 2.87 in
• Top to Inlet Center: 2.07 in
• Orifice Size: 0.73 in
• Body Material: Brass
• Ball Material: Chrome Plated Low Lead Brass
• Stem Material: Low Lead Brass
• Softgoods Material: PTFE/FKM
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Temperature Rating: 15 to 160 deg F
• End Style: Solder
• Series: 5595AB
• Port Type: Full
