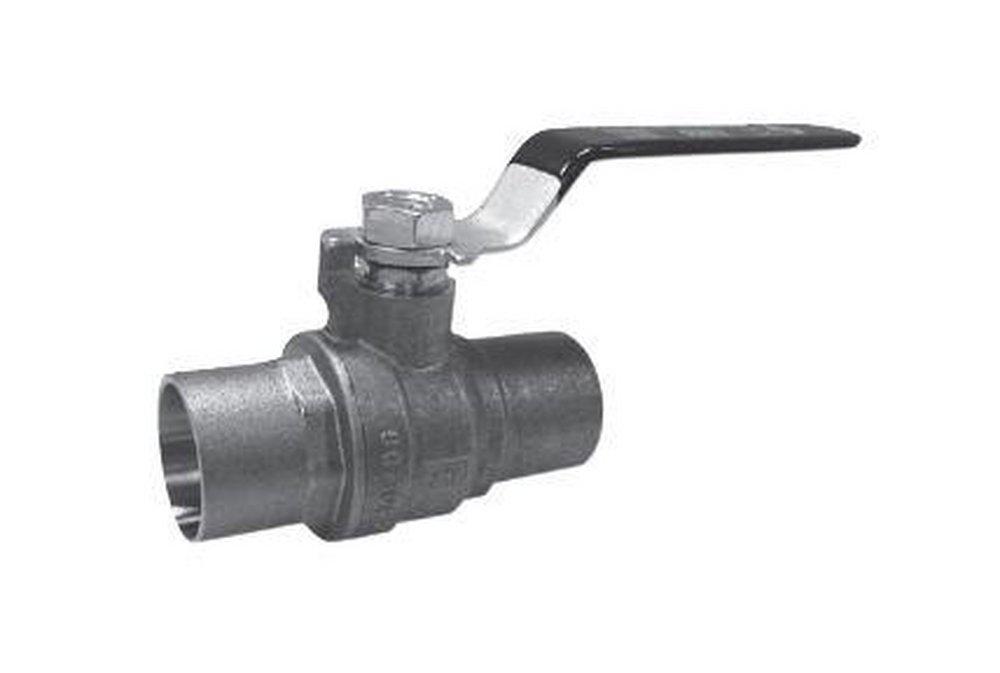

Red-White Valve 5595AB-2 Figure 5595AB 2 in. Brass Full Port Solder 600# Ball Valve

Product Description

The Red-White Valve 5595AB-2 is a two-piece brass ball valve with a full port design. This valve is suitable for solder connections and has a pressure rating of six hundred pounds of water, with a temperature range from fifteen to one hundred sixty degrees Fahrenheit. Notable features include a chrome-plated low lead brass ball and a blow-out proof stem. This valve is ideal for plumbing and HVAC applications where fluid flow control is essential.

• Full port design for maximum flow.
• Chrome-plated low lead brass for durability.
• Blow-out proof stem enhances reliability.

Product Highlights

The valve's adjustable packing nut ensures easy maintenance while providing a secure seal. The design meets industry standards such as AB1953 and ANSI NSF 61-F/G/372.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Part Number: 5595AB-2

Technical Specifications

• Nominal Size: 2 in
• Orifice Size: 1.95 in
• Body Material: Brass
• Ball Material: Chrome Plated Low Lead Brass
• Pressure Rating: 600 lb WOG/150 lb WSP
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Inlet to Outlet Length: 5.31 in
• Top to Inlet Center: 3-1/4 in
