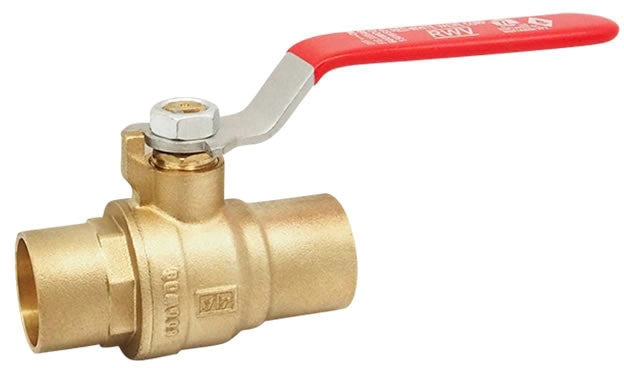

Red-White Valve 5595AB-112 Low Lead Brass Full Port Ball Valve CXC

Product Description

The Red-White Valve 5595AB-112 is a lead-free, full port ball valve. This valve has a solder end connection and is designed for robust performance in various plumbing applications.

• Lead-Free: Compliant with standard lead-free regulations.
• Temperature Rating: Operates effectively between fifteen to one hundred sixty degrees Fahrenheit.
• Durable Construction: Features chrome plated low lead brass for longevity.

Product Highlights

This valve features a blow-out proof stem, an adjustable packing nut, and PTFE packing with an FKM O-ring, ensuring reliable operation and minimal maintenance.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Model: 5595AB

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 4-1/4 inches
• Nominal Size: 1-1/2 inches
• Orifice Size: 1.46 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Trim Material: Low Lead Brass Stem and PTFE Seat
