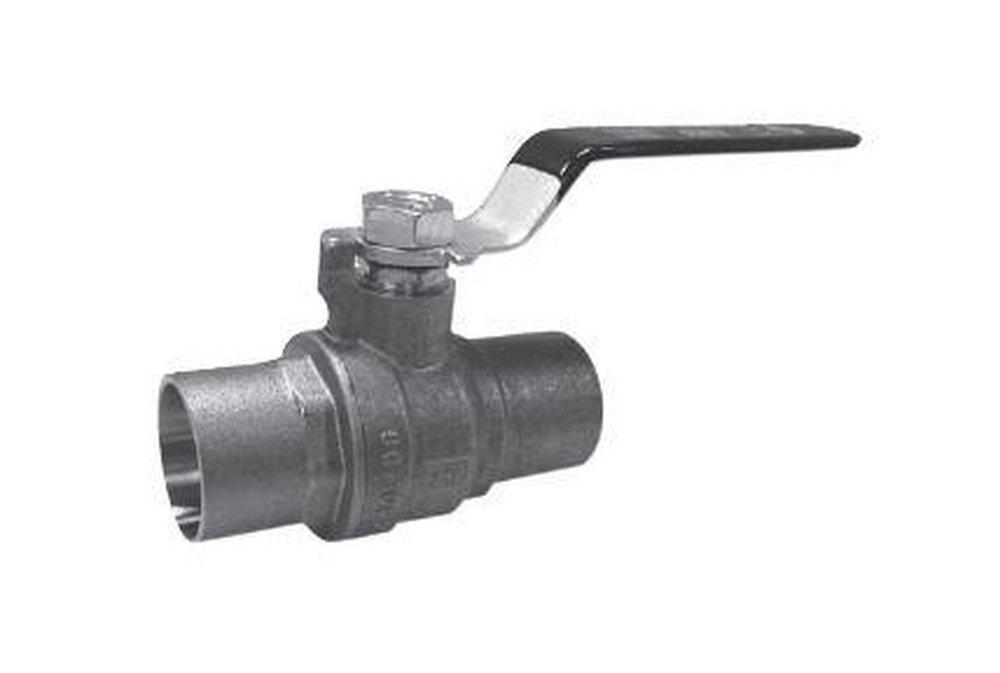

Red-White Valve 5595AB-1 Figure 5595AB 1 in. Brass Full Port Solder 600# Ball Valve

Product Description

The Red-White Valve 5595AB-1 is a ball valve designed for efficient fluid control. This valve features a lead-free brass body and full port design, making it suitable for various plumbing applications. The solder ends allow for easy installation with standard fittings.

• Lead-free brass construction for safety and compliance.
• Rated for six hundred pounds water over gas (WOG) and one hundred fifty pounds water service pressure (WSP).
• Compatible with solder connections for straightforward installation.

Product Highlights

This ball valve is reliable for residential and commercial plumbing systems, ensuring a secure seal and easy flow management.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Product Type: Ball Valve

Technical Specifications

• Nominal Size: 1 in
• Orifice Size: 0.95 in
• Inlet to Outlet Length: 3.43 in
• Top to Inlet Center: 2.36 in
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Temperature Rating: 15 to 160 deg F
• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
