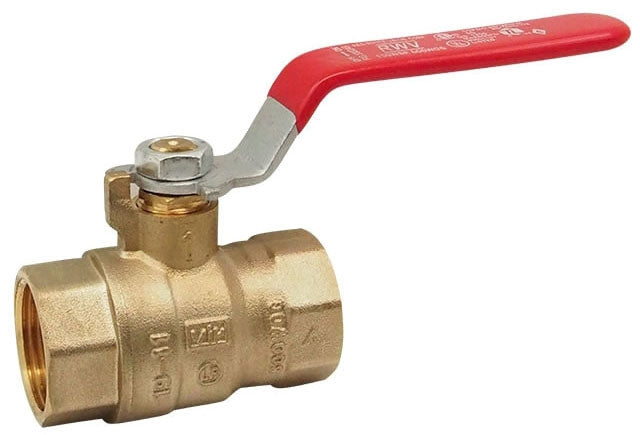

Red-White Valve 5592AB-34 Low Lead Brass Full Port Ball Valve IPS

Product Description

The Red-White Valve 5592AB-34 is a two-piece ball valve designed for efficient fluid control. This valve features a three-quarter inch nominal size and a thread end style for easy installation. It operates under a pressure rating of six hundred pounds WOG and one hundred fifty pounds WSP, making it suitable for various applications.

• Blow-out proof stem for enhanced safety
• Adjustable packing nut for easy maintenance
• Compatible with PTFE packing and FKM O-ring

Product Highlights

This ball valve is ideal for industries that require reliable water and gas flow management. With its low lead brass construction, it complies with safety regulations to prevent lead contamination.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5592AB-34

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Thread
• Inlet to Outlet Length: 2.4 inches
• Nominal Size: 3/4 inches
• Orifice Size: 0.73 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Series: 5592AB
• Softgoods Material: PTFE/FKM
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 2.05 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Type: 2-Piece
